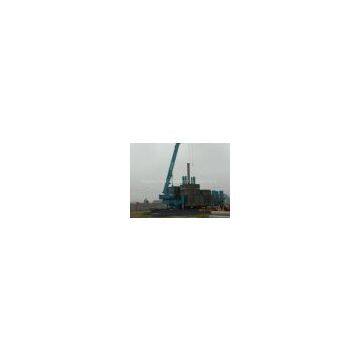

Hydraulic Static Pile driver

Realtop Heavy Industry is a specialized manufacturer for construction machinery in South China.(aileenrealtop@gmail.com)


Hydraulic static pile driver
Structure & Function
Hydraulic Static Pile Driver consists of clamping and piling mechanism, lifting mechanism, hoisting mechanism, hydraulic system, electric system, etc, with the functions of hoisting, pressing, walking and steering.

Operational Characteristics
1. Civilized construction: Clean No noise No vibrations, No construction wastes.
2. Reliable Construction Quality:Piling process is similar to static load testing where pile bearing force can be displayed. 100% pile success rate is guaranteed.
3. Fast piling and High efficiency?One HSPD can drive piles in total of 600~800m per 8 hours, much faster than other modes. Especially suitable for large-scale or time-constraint projects.
4. Walking and steering freely: Easy to align piles.
5. Easy to disassemble & assemble.

Application Scope
1. No limitation on pile length. Suitable for construction in clay soil, soft soil and sand bed foundation, or in the Karst areas with low earth covering, or by riversides, or in coastal areas with deep bearing stratum.
2. No noise, No pollution, especially suitable for operations in areas with noise control such as schools, social communities, and urban areas.
3. No vibrations. Suitable for vibration-control areas such as subways, overpass, dangerous buildings, precision instrument buildings and those nearby banks.

technical parameters:
Models ZYC500
Rated Piling Pressure (kN) 5000
Piling Speed (m/min)Max5.7 Min 0.9
Piling Stroke (m) 1.9
Pace (m) Longitudinal 3.6 Horizontal 0.6
Angle Range (°) 11 Rise Stroke (m) 1.1
Square Pile (mm) Max 450 Min 400

Circle Pile (mm) Max 600 Min400
Side Piling Space (mm) 1380
Corner Piling Space (mm) 2800
Lift Weight (t) 16
Hanging Pile Length (m) 15
Power (kW) Piling 111 Lift 30
Dimension (m) Working Length 13.20 Working Width 7.60
Transportation Height 3.10
