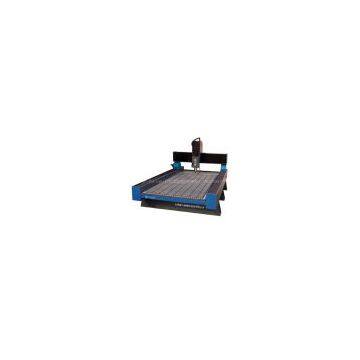

RLP-1224 stone engraving machine
Natural marble, granite, artificial stone, tombstones, milestones, ceramic tile, glass and wire three-dimensional relief carving, cutting, back side, drill two-dimensional sculpture
◆ bed welded steel pipe with thick, tempered at high temperature to ensure the body deformation is small, rigid, and strength.
◆ Y axis adopts two-motor drive, select matching, to ensure smooth movement.
◆ Using high accurate rack and pinion drive, high precision, speed, great strength.
◆ imported linear square rails, high precision bearing redundancy, long life.
◆ All excellent mechanical and electrical design, selection of a variety of electrical accessories, to minimize the failure rate.
◆ automatic machine is equipped with a sink and water cooling system.
◆ All dust waterproof design, full protection machinery transmission parts.

Model RLP-1224
X, Y axis travel 1200 × 2400mm
Z axis travel 200mm
Platform size 1480 × 3000mm
Maximum operating speed of 20m/min
Maximum engraving speed of 10m/min
Resolution 0.005mm
Repeat positioning accuracy of 0.05mm
G carving instruction code *, u00 *, plt
Software operating environment Windows98/2000/xp
Power (excluding spindle) 2000W
Voltage AC380V/50Hz
Spindle power 3.3-6.6KW (constant power)
Spindle speed 0-24000rpm/min
