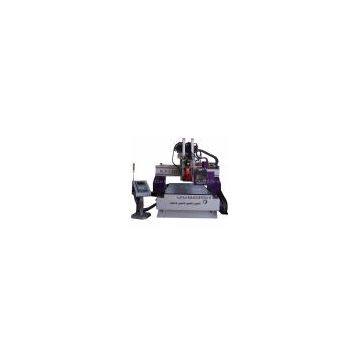

RLP-1224:
Product Parameter description:
Features
◆ The machine is suitable for diverse variety of complex processing or processing models, widely used: Laser marking, drilling, cutting, milling Voltage, Leading Edge, etc., mainly used for cutting and engraving and milling.
◆ models in this paragraph of the machinery, electrical components are top international products. Such as Germany's vacuum system and drive system, servo drive system in Japan, Italy imported spindle.
◆ hats automatic tool changing system, tool storage capacity of 8, tool change time of just 8 seconds.
◆ dual motive of bilateral transfer station, is a heavy cutting-type processing machines.
◆ Vacuum table. The whole process without further cutting board, cutting on the line can be omitted making the mold.
◆ processing speeds of up to 25 m / min.
New
CNC machining center-one exclusive feature is mainly used for drilling vertical and lateral drilling, drilling more efficient and convenient than the spindle, reducing tool change procedures to fill the side of the processing defect. CNC machining center for diversification of the complexity of the processing to the main cutting and engraving and milling can also be carving, drilling, milling, side of the saw, and so on down side, widely used in furniture, doors, cabinets, production and non-metallic mold in the field. Rui Li Pu TianJin CNC Equipment Co., Ltd. is specialized in the development, production CNC woodworking machining centers, CNC wood engraving machine, three-dimensional numerical control products, scanners and other high-tech enterprise, as the few independent research and development capability with the professional CNC woodworking machinery enterprises, full range of products the company has passed CE certification.
For industry
Furniture industry, solid wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables, mahjong table, furniture, office furniture, wooden sound box, wooden furniture, kitchenware and other processing. Also applies to non-metallic mold, automotive mold processing industry polystyrene.
Performance parameters
NO. Performance index parameter is optional
A trip within the X travel 1200mm 2000mm
Y travel 2440mm 5000mm or less
Less than 380mm 700mm Z stroke
2 platform size 1220x2440mm
3 precision machining accuracy 0.02mm
Repeat positioning accuracy of 0.05mm
4 Structure of the table structure of the vacuum adsorption (bakelite)
X, Y, Z lead screw structure Z, X, Y rack
5 speed maximum speed 50000mm/min blank lines
Maximum working speed 25000mm/min
6 Spindle power 8.0KW
Spindle speed 0-24000r/min
7 operating mode servo
8 voltage AC380V/50Hz AC380V/60Hz
9 G code to run command
The new generation system 10 operating system
11 Net weight 2000kg
12 Gross weight 2300kg
