High Power Outside Flood Light With Aluminium Shining Reflector / Hid Floodlight

High Power Outside Flood Light With Aluminium Shining Reflector / Hid Floodlight thumbnail-1
High Power Outside Flood Light With Aluminium Shining Reflector / Hid Floodlight photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SHINDER
Place of Origin:
China
Model Number:
SDFL332B - 1000W
Contact Supplier Request Quote Chat Now
Shinder Lighting Appliances Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SHINDER
Place of Origin China
Model Number SDFL332B - 1000W
Delivery Time:15-20 work days
Certification:CE ; Rosh ; SASO ; COC ; SGS

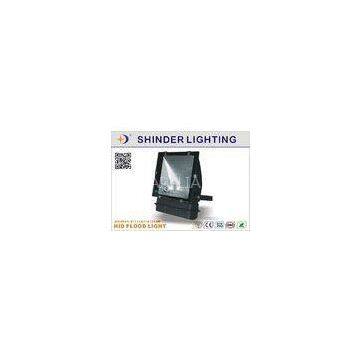

1000w high quality professional outdoor waterproof ip65 hid E40 asymmetrical flood light with compact ballast box

SDFL332B-1000W is one professional heavy duty outdoor waterproof flood light offering 1000W lamp options with aymmetrical distribution in a durable aluminium housing with compact owned separate integrated gear

EMPTY HOUSING OR COMPLETE SET WITH CONTROL GEAR & LAMP IS OPITIONAL

Features

    *  high pressure die casting aluminium housing with six pcs of steel clips to fix the front glass

    *  adjustable steel mounting bracket to support the whole flood light with galvanised pretreatment

    *  durable polyester powder coat paint finish in black or grey or dark available

    *  owned compact control gear box with IP65 cable gland entry

    *  can stand over 40 ~ 50 degree high temperature circumstance operation

    *  anodised aluminium shining reflector

    *  supplied with quality E40 single HID lamp using

Applications

    sport lighting,stadium lighting,public lighting purpose,parking area,loadinig docks and landscape,etc.

Specifications

ITEM HID FLOOD LIGHT
MODEL SDFL332B-1000W
WATT. 1000W available
Lampholder E40
VOLT. 220-240V/50Hz
WATERPROOF IP65
FRONT GLASS tempered glass
MATERIAL heavy duty die casting aluminium
REFLECTOR Efficacy shining aluminium reflector
LIGHT BEAM asymmetrical distribution
EMPTY WEIGHT 12.3kg
DIMENSION 550*675*210mm
SUPPORT BRACKET adjustable
FINISHED COLOR durable polyester powder coating
CABLE GLAND 5-10mm

Usage

we can provide empty housing or complete with control gear and lamp,if you have own ballast and lamp,please as following:

    *  cut off the power firstly

    *  use the screws driver tools to open the cover of control gear department

    *  install 1000w ballast,ignitor,capacitor on the existing electric plate inside control box

    *  use the special too to open the front glass

    *  put inside 1000w high pressure sodium lamp or 1000w metal halide lamp with E40 lampholder

    *  confirm all safe connection,then getting through the power,light it.

if you order complete set,just get through the power cable then light it.

Packing Details:

individual packing,one pc is one master carton

packing size: 68.5*62*23.5cm/13.5kg/12.3kg/pc/ctn

270pcs each 20\'\' container

670pcs each 40\'\' HQ container

Delivery time: 15-20 work days

Certificates: CE / Rosh / EMC / LVD / SASO / COC available

QUALITITY SYSTEM: ISO9001

OEM or Customized design is available,just give us an email or a call,please!
