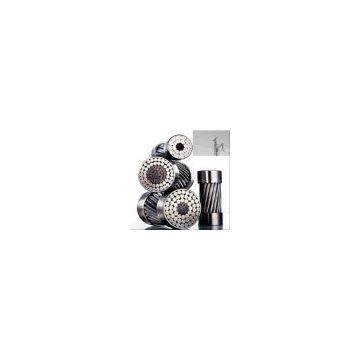

ACSR Conductor Best-selling in 2009
US$ 1630 - 1630
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Brand Name:
Huakai cable
Place of Origin:
China
Model Number:
per different standards
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
AACSR ConductorUS$ 1630 - 1630MOQ: 3 Pieces -
ACSR Conductor for Asian MarketUS$ 1630 - 1630MOQ: 3 Pieces
-
All Aluminum Alloy Conductor (AAAC Conductor)US$ 2400 - 2400MOQ: 3 Pieces
-
Aluminum SheetUS$ 2500 - 2500MOQ: 5 Pieces
-
Aluminum Stranded Conductor (AAC Conductor)US$ 2350 - 2350MOQ: 3 Pieces
Brand Name
Huakai cable
Place of Origin
China
Model Number
per different standards
Our ACSR conductor is made of good aluminum and steel,so products have good electrical conductivity properties.
And we can produce the products, conforming to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF. AS/NZS and we also produce products, according to your special requirement.
What's equally important, we can provide products more quickly,so as to save your time. We will offer you a competitive price while keep the excellent quality. We are manufacture,so we can control the quality.
Honesty, friendship, profit are what we pursue.
Welcome to contact me.
Best regards!
Attached a brief sample of standard:
| GB/T1179-1999(Equivalently adopts IEC 1089-1991) | ||||||||||
| Specification Number | / Stranding number/diameter | Overrall diameter mm | weight/lenth kg/km | breakingload rating KN | 20 Dc resistance at 20 Ω/Km | |||||
| Aluminum | Steel | JL/G1A | JL/G1B | JL/G2A | JL/G2B | JL/G3A | ||||
| 16 | 6/1.84 | 1/1.84 | 5.53 | 64.6 | 8.08 | 5.89 | 6.45 | 6.27 | 6.83 | 1.7934 |
| 25 | 6/2.30 | 1/2.30 | 6.91 | 101 | 9.13 | 8.83 | 9.71 | 9.42 | 10.25 | 1.1478 |
| 40 | 6/2.91 | 1/2.91 | 8.74 | 162 | 14.4 | 13.93 | 15.33 | 14.87 | 16.2 | 0.7174 |
| *** | *** | *** | *** | *** | *** | *** | *** | *** | *** | *** |
British standard
| BS215 | ||||||||||
| Nominal Area (mm2) | Stranding No.and Dia.(No./mm) | Calculated Area (mm2) | Approx. Overall Dia | Approx. Weight | Calculated Breaking Load | Calculated DC Resistance at 20 | Code Name | |||
| Al | St | Al | St | Total | (mm) | (kg/km) | (KN) | Ω/km) | ||
| 20 | 6/2.11 | 1/2.11 | 20.98 | 3.5 | 24.48 | 6.33 | 84.85 | 7.9 | 1.368 | Squirrel |
| 25 | 6/2.36 | 1/2.36 | 26.24 | 4.37 | 30.62 | 7.08 | 106.1 | 9.61 | 1.093 | Gopher |
| *** | *** | *** | *** | *** | *** | *** | *** | *** | *** | *** |
American standard;
| ASTM B232-81 | ||||||||
| aluminum Section Area Cir.mils or AWG | Stranding No.and Dia.(No./mm) | Approx. Overall Dia | Approx. Weight | Calculated Breaking Load | Calculated DC Resistance at 20 | Code Name | ||
| ( mm2) | Al | St | (mm) | (kg/km) | (KN) | Ω/km) | ||
| 6 | 13.3 | 6/1.68 | 1/1.68 | 5.04 | 53.75 | 5303 | 2.157 | Turkey |
| 4 | 21.18 | 6/2.12 | 1/2.12 | 6.36 | 85.57 | 8302 | 1.335 | Swan |
| 4 | 21.12 | 7/1.96 | 1/2.61 | 6.53 | 99.56 | 10642 | 1.352 | Swanate |
| 2 | 33.59 | 6/2.67 | 1/2.67 | 8.01 | 135.7 | 12653 | 0.854 | Sparrow |
| 2 | 33.54 | 7/2.47 | 1/3.30 | 8.24 | 158.6 | 16171 | 0.852 | Sparate |
| *** | *** | *** | *** | *** | *** | *** | *** | *** |
