1-10V Dimmable LED Driver / Daylight Harvesting Sensor For Meeting Room Light

Delivery Time:1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Certification:CE , R&TTE

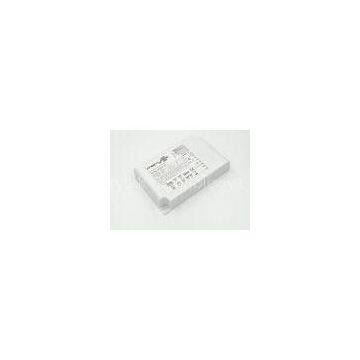

1-10V dimmable led driver ML50C-PV work with MW sensor MC003V and 1-10V Daylight Harvesting Sensor MS01

Description

  Widely applied in office and meeting room   MS01 work with ML50C-PV and MC003V to provides auto on – off,dimming and  daylight harvesting function   When no motion detected,luminaire will be dimmed and switched off at last   Output current to load selectable from 350mA to 1050mA   With ambient light dependent control.   Simple setting of the target light level by mean of potentiometer.   MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V interface and using photocell to measure ambient lux level and automatically calculate how much artificial light is need, and then convert the amount of light to 1-10V dimmable control gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output according to the signal from the daylight sensor.

Function:

Daylight harvesting auto switch off and dimming

Specifications:

Operating voltage	1 - 10Vdc(MS01) 220-240Vac(ML50C-PV,MC003V)
Max. current sink	50mA(MS01) 1050mA(ML30C-PV)
Dimming range	1％~100％
Output voltage	60Vdc max
Cable length	80Cm
Color coding of cable	Red+, Black-
Detection angle	90°
IP rating	IP20
Operation Temperature	-0℃~45℃(MS01) -20℃ ~ 50 ℃(ML50C-PV) -35℃ ~ 70 ℃(MC008S)

Applications:

Office, Workshop, Warehouse, etc
