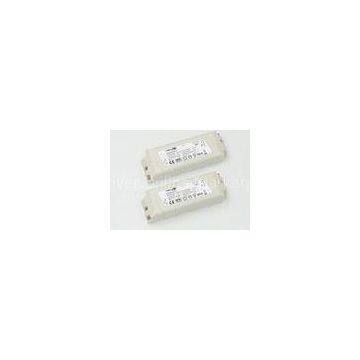

Dimmable 500mA LED Driver 1-10v 1*8w For High Bay , Two Stage AC - DC - DC Circuit

Dimmable led driver 1*8W 500mA with 1-10V and Push button

Description:

1, Two stage AC-DC-DC circuit, without flickering durign dimming

2, Built in 1-10V dimming and Push dimming function

3, Output current 500mA. It\'s also can be customized.

4, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.

5, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

6, Maximum length of the cable, from switch to last driver is 20m.

7, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.

8, Reset the LED dirver easily by a jumper.

9, Factory setting: 100% dimming level.

10, Press-in terminals in primary and secondary side, easy assembly.

11, Protection: Short circuit / Over voltage / Over temperature.

12, Long life span 50,000h, 5 years guaranty.

Applications:

For office,warehouse etc

Synchronization:

For the resynchronization to work correctly when more than one driver is connected to the same push button, follow steps of below after the drivers are connected:

A) Press push button for more than one second, followed by a short push (<1s), now, led light switches off.

B) Do a long push, the system will be resynchronized.

Dimming Operation:

A) PUSH Dim

Short push (<0.1sec): Ignore, to avoid reaction on AC spike.

Short push (0.1~1sec): Switch on or switch off.

Long push (>1sec): Dimming up or down, dimming level automatically stops at minimum or maximum value.

B) 1-10V Dim

Using the push dimming will make 1-10V dimming inactivated. The driver has to be reset to active the 1-10V dimming function again.

Specifications
