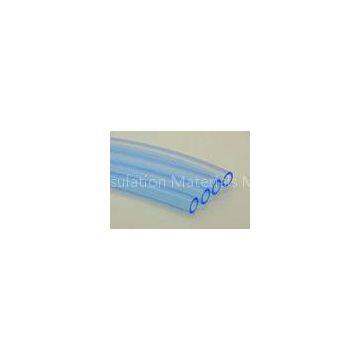

E467953 Clear Flexible PVC Tubing Transparent Black White Red 0.8mm - 26mm
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Custom Multi Color Flexible Silicone Rubber Tube / Tubing Small Diameter Fireproof
-
Heat Shrink Terminations and Joints Cable Spare Parts for XLPE and PILC Cables
-
Transparent PTFE Tube Pipe Fittings PTFE Products for Mechanical Parts
-
High Temperature Resistant FEP Tube Clear Plastic Tubing 1.0mm - 16.0mm
-
Black Grey White PET and Nylon Braided Expandable Sleeving for Automobile , AC Motor , Heater
-
Flexible White Black Seal Type Corrugated Pipes with PE PP PA Fire and Acid Resistance
Product Details
| Brand Name | SUNBOW | Place of Origin | China | |
| Model Number | SB-PVC |
Product Description
Certification:UL, ROHS, REACH
E467953 Flexible PVC Tubing 0.8mm - 26mm Transparent Black White Red
Specification
|
Item |
Unit |
Test Method |
Numerical Value |
|
|
SB-300 |
SB-600 |
|||
|
Voltage Rating |
V |
300 |
600 |
|
|
Temperature Rating |
ºC |
UL224 |
105 |
|
|
Voltage Resistance |
Before Aging |
UL224 23ºC |
2500V/60sec |
|
|
After Aging |
UL224 136ºC 168hrs |
2500V/60sec |
||
|
Volume Resistivity |
Ωcm |
UL224 |
≥1010 |
|
|
Tensile Strength |
Before Aging |
Mpa |
UL224 23ºC |
≥10.4 |
|
After Aging |
Mpa |
UL224 136ºC 168hrs |
≥7.3 |
|
|
Elongation |
Before Aging |
％ |
UL224 23ºC |
≥100％ |
|
After Aging |
％ |
UL224 136ºC 168hrs |
≥100％ |
|
|
Flexibility |
UL224 136ºC 168hrs |
No Cracking |
||
|
Heat Shock |
UL224 180ºC 4hrs |
No Cracking |
||
|
Cold Bend |
UL224 30ºC 1hrs |
No Cracking |
||
|
Copper Stability |
UL224 136ºC 168hrs |
No Corrosion |
||
|
Flame Resistance |
UL224 |
VW－1 |
Special instruction: The PVC tubing supplied for the customers should be based upon the samples which are confirmed by both sides, not restricted by the above performance index.
Dimension
(One) The British System Series of AWG
|
AWG No. |
Inner Diameter(mm) |
Wall Thickness (mm) |
Package (m/roll) |
|
|
SB-300 |
SB-600 |
|||
|
24 |
0.55±0.1 |
0.25±0.05 |
0.40±0.05 |
305 |
|
22 |
0.65±0.1 |
0.25±0.05 |
0.40±0.05 |
305 |
|
20 |
0.85±0.1 |
0.25±0.05 |
0.40±0.05 |
305 |
|
19 |
0.9±0.1 |
0.30±0.05 |
0.40±0.05 |
305 |
|
18 |
1.0±0.15 |
0.30±0.05 |
0.45±0.05 |
305 |
|
17 |
1.2±0.15 |
0.30±0.05 |
0.45±0.05 |
305 |
|
16 |
1.3±0.15 |
0.30±0.05 |
0.45±0.05 |
305 |
|
15 |
1.5±0.15 |
0.30±0.05 |
0.45± |
