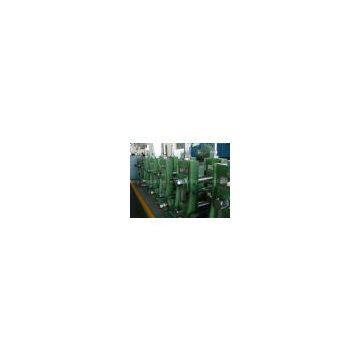

Help CenterHG114 Pipe Production Line
Related Products
I.Brief introduction
HG 114 high frequency longitudinal welded pipe production line / pipe making machine / tube forming machine is designed to produce welded pipes of 50mm-114mm in OD and 1.5mm-4.5mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD : 50mm-114mm Thickness : 1.5mm-5mm
Square & rectangle tube : 40mm×40mm – 90mm×90mm, Thickness : 1.5mm-4mm
Length : 6 -12m Length Tolerance : ±3mm
2.Raw Material:
Material: Carbon steel coil Q235B(ASTM GR·D,σs 230)
Width : 165mm-500mm Thickness : 1.5mm-4.5mm
Coil ID : 450-520mm
Coil OD : Max 1600mm
Coil Weight: 3t
3. Tube mill
Production Speed : 20-60 m/min
Direction : left to right or right to left from operator`s side decided by customers.
Capacity : 30,000ton/year
Electricity Input Power : 1100 kw
Line Area : 70m(length) ×5.5m (width)
Tube Bottom Passline (Above floor level) : 800 mm
Weight : about 34t
4. Table
|
Model |
Specification(mm) |
Thickness (mm) |
Electricity Input Power(kw) |
Line Area(m) - programmable |
Working Speed (M/min.) |
|
|
Circular |
Rectangular/Square |
|||||
|
HG114 |
48-114 |
40mm×40mm – 90mm×90mm |
1.5-4.5 |
1100KW |
70m*5.5m |
65 |
