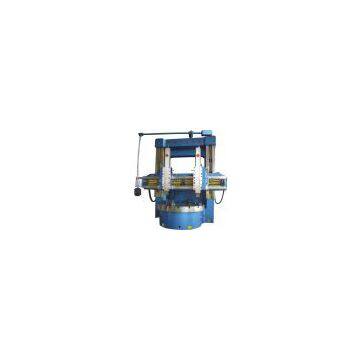

Help CenterC5250 Vertical Lathe
Related Products
I. Main use
The vertical lathe is suitable of the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools. It can perform finely and roughly turning cylinder and inner holes, inner and outer taper, surface, and grooving.
II. Main technical specification of the vertical lathe
|
Name |
Value |
|
Max. turning diameter (mm) |
5000 |
|
Max. working height of workpiece (mm) |
2000 |
|
Max. weight of workpiece (T) |
30/50 |
|
Table diameter (mm) |
3600/4500 |
|
Speed range of table (r/min) |
1.3~42 |
|
Speed-step of table |
16 steps |
|
Max. torque of table (KN.m) |
63 |
|
Max. cutting resistance of right tool post (T-Ram) (KN) |
35 |
|
Max. cutting resistance of left tool post(T-Ram) (KN) |
28 |
|
Travel of right tool post Horizontal (mm) |
-20~2630 |
|
Travel of right tool post Vertical (T-Ram) (mm) |
1250 |
|
Travel of left tool post (Horizontal) (mm) |
-20~2630 |
|
Travel of left tool post (Vertical) (T-Ram) (mm) |
1250 |
|
Feed range and speed-step of tool post (mm/min) |
0.24~145 18steps |
|
Fast moving speed of tool post (mm/min) |
1550 |
|
Crossbeam fluctuation travel (mm) |
1650/2550 |
|
Crossbeam fluctuation speed (mm/min) |
350 |
|
Moving degrees limit of tool post (°) |
±30 |
|
Cutting section of the tool bar (mm) |
40×50 |
|
Power of main motor (AC) (kw) |
75 |
|
Overall dimensions (mm) |
8610×6000×5600 |
|
Weight of machine (t) |
55/60 |
