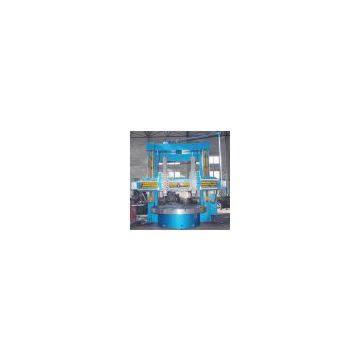

Help CenterC5232 Vertical Lathe
Related Products
I. Main use
The vertical lathe is suitable of the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools. It can perform finely and roughly turning cylinder and inner hole, inner and outer taper, surface, and grooving.
II. Main technical specification of vertical lathe
|
Name |
Value |
|
Max. turning diameter (mm) |
3200 |
|
Max. working height (mm) Standard Increasing 500mm |
2000 2500 |
|
Max. weight of workpiece (t) |
10/30 |
|
Table diameter (mm) |
2830 |
|
Speed range of table (r/min) |
2~63 |
|
Max. torque of table (KN.m) |
32 |
|
Max. cutting resistance of right tool post (KN) |
40 |
|
Max. cutting resistance of left tool post (KN) |
35 |
|
Travel of tool post (Horizontal) (mm) |
1840 |
|
Travel of tool post (Vertical) (mm) |
1000/1250 |
|
Feed range and speed-step of tool post (mm/min) |
0.24~145 18 steps |
|
Rapid moving speed of tool post (mm/min) |
1550 |
|
Crossbeam fluctuation travel (mm) |
1750/2250 |
|
Crossbeam fluctuation speed (mm/min) |
350 |
|
Moving degrees limit of tool post (°) |
±30 |
|
Table guide |
hydrostatic |
|
Cutting section of ram (mm) |
200×255 |
|
Cutting section of the tool post (mm) |
40×50 |
|
Crossbeam fluctuation motor power (AC) (kw) |
7.5 |
|
Cutting feed two-speed motor power of left feeding-box (AC) (KW) |
1.3/1.8 |
|
Fast motor power (KW) |
2.2 |
|
Power of main motor (AC) (KW) |
55 |
|
Weight of machine (t) |
36/45 |
