Help CenterCeramic Heater
Related Products

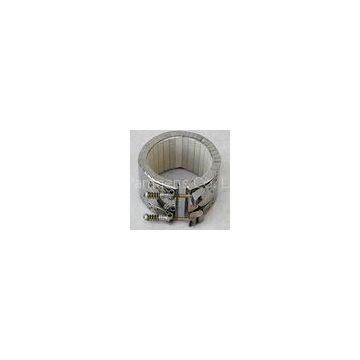

PAMAENS's Ceramic Band Heaters are widely used to heat the cylinders (barrels) on all types of plastic(s) processing machinery:
1. Injection Molding
2. Blow Molding
3. Extrusions
4. Pipe and drum heating
PAMAENS's Ceramic Band Heaters' higher watt densities provide higher operating temperatures, Maximum sheath temperature up to 500 C.
|
Minimum Diameter |
55mm | |
| Minimum Width | 25mm | |
| Power | Up to 480V (Single or Three Phase) | |
| Resistance | Ni80Cr20 | |
| Watt Density | 8 W/cm2 | |
| Terminals | Junction Box with braided cable/Post terminals/Customized | |
| Sheath | Stainless steel 304 | |
| Overall Thickness | 15mm |
Note: Power and dimension is customized.
Features:
Thermal Insulation
Even heat distribution
Saves Energy with insulation jacket, minimum Heat Loss
Easy Installation & removal
Longer Heater Life
Can be manufactured acc. to your specification
Various Types of Construction & terminations
Ceramic Band Heaters-Ordering Information
Inside diameter (Ø).
Length of the heater (L).
Operating voltage (V).
Wattage (W).
Location dimentions of holes for T/C and slot in the heaer (if any).
Termination type of location.
Lead length.
Quantity.
Our Services
One to two years warranty.
Strict quality control, 100% inspection before shipping.
Flexible MOQ, payment term, lead time.
Professional design or suggestion according to application.
Professional sales service.
Please contact us for more details
WhatApp 0086 17717386320
Skype: tina_sun126
