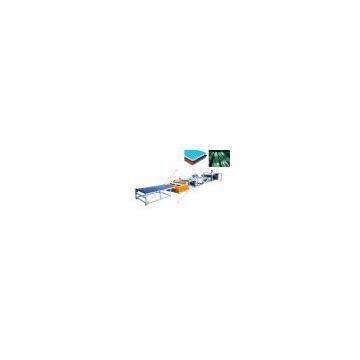

The production line consists of SJSZ-65*22 Conical twin screw extruder and corresponding wavy board forming machine, haul-off unit and cutting unit. It can continuously produce UPVC colorful, season resistance and inflaming retarding wavy board used in buildings. When change the related parts, the production line is capable of producing hollowness board. This line has the characteristics of stable plasticization, compact structure, and high automation and easy to operate, etc, it is a perfect choice for manufacturers.
Main technical parameter:
Model of extruder: SJSZ-65*22
Mould: T-type flat mould L=1000mm
Forming device:
Big wave: R=15h=16.5 Pitch of waves: 63mm
Small wave: R=9h=8 Pitch of waves: 36mm
Size of cooling mould: 1000mm 540mm
Cooling mode: By water
Hauling off speed: 0.5-5mm/min
Length of hauling shaft: 1000mm
Hauling power:2.2KW(frequency inverter)
Cutting mode: Sheer type (pneumatic control)
Cutting follow-up space: 500mm
Pneumatic pressure: 0.4-0.6MPa
