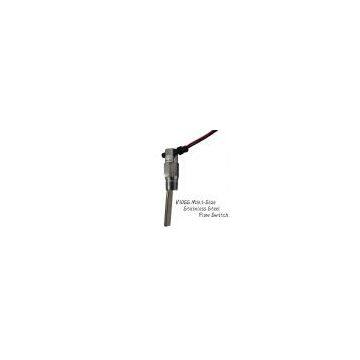

Help CenterV10SS Paddle Flow Switch With Mini Size Stainless Steel Body
Related Products
-
V10 Mini Size Paddle Flow SwitchUS$ 25 - 25MOQ: 1 Piece -
PVC Tee Pipe Paddle Flow SwitchNegotiableMOQ: 1 Piece
-
GE-1306 Stainless Steel Level SwitchNegotiableMOQ: 1 Piece
-
GE-1308 FDA Potable Water Level Float SwitchNegotiableMOQ: 1 Piece
-
GE-1309 Series Stainless Steel Level Float SwitchNegotiableMOQ: 1 Piece
* Wetted Material: Stainless Steel
* Environmental Temperature: -40C ~ 95C
* Medium Temperature: -40C ~ 150C
* Install Pipe Size: DN15~DN50
* Max Capacity Rating: AC300V AC0.5A, DC350V DC0.7A, Max 50W
* Wire: AWG22 Red Color 1000mm
* Max Pressure: 100bar
* Pipe Connection: Male BSP1/2” or Contact factory for other options
* Enclosure Rating: IP66
* Mounting Orientation: Switch can be installed in any position but the actuation/deactuation flow rates are based on horizontal pipe runs and are nominal values.
* Set Point Adjustment: Vane is trimmable.
Designed to provide an inexpensive, reliable unit to monitor the presence or absence of flow in a system. The switch adjustment allows the user to change the switch to Normally Open (NO) or Normally Closed (NC) in the field merely by loosening two screws. The switch housing is located outside the process media, making switch change-over or maintenance easy without interruption of process flow.
A full size, trimmable stainless steel vane is provided with a removable laminated template. This template is calibrated for brass or ductile iron reducing tees and forged steel straight tee/bushing combinations. Allows for field installation in pipelines from 1/2" to 2" diameter.
