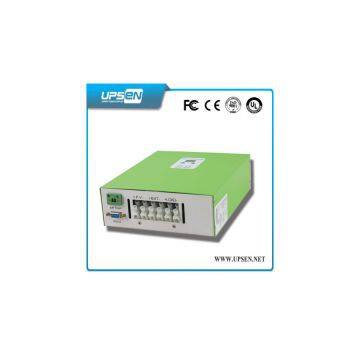

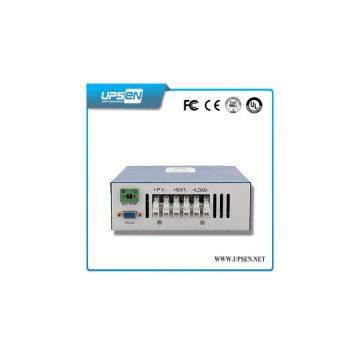

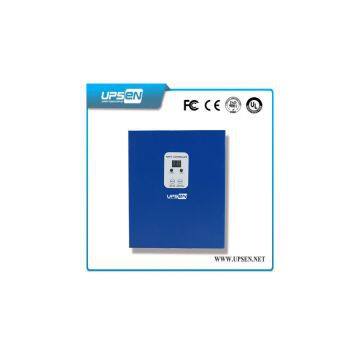

MPPT Solar Charge Controller With12V24V/48VDC

MPPT Solar Charge Controller with12V24V/48Vdc

Key Features
1:eSmart Controller with peak efficiency up to 99% under MPPT charging mode, can save 30%~60% power compared with traditional PWM controller.
2:DC12V/24V/48V battery system automatic detect, users can use it in different system easily.
3:Maximum PV input voltage up to DC100V.
4:Three stages charging: fast charge(MPPT), constant voltage charge, floating charge, which can protect  batteries well .
5:Three option of discharge: on mode , off mode and PV (Solar) voltage control mode.
6:Discharge type owns always on pattern and always off pattern, it also has PV voltage solar controlling switch pattern.
7:Digital tube can display battery voltage and charging current. The software can display various parameters such as model number, PV input voltage, battery type, battery voltage, charging current, charging power,  working condition.
8:Clients can auto select any one in the 4 kinds of commonly used batteries, Sealed lead acid, vented, Gel, NiCd and custom other batteries.
9:This controller can be paralleled infinitely.
10:CE, RoHS Certifications approved; cooperating with clients through the other certifications.
11:2 years warranty; 3~10 years extended technical service.
