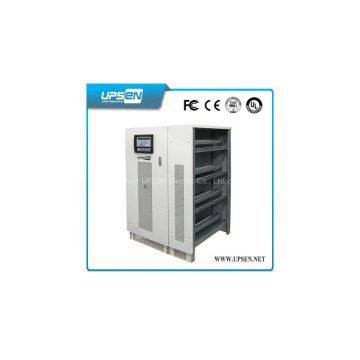

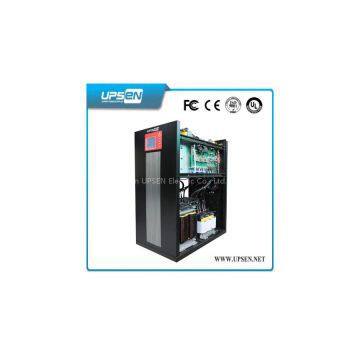

Low Frequency 10KVA - 800KVA Online 3 Phase Uninterruptible Power Supply CE ISO UL ROHS

Low Frequency Online UPS Industrial Power Supply 10KVA - 800KVA with CE ISO UL ROHS Certificate

Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-800Kva (3Ph in/3Ph out)

Quick Overview

1: UPS with 3 Phase 208Vac 220Vac or 380Vac 400Vac 415Vac input and output

2: UPS with Low-power dissipation but high-efficiency

3: Advanced DSP digital control technology

4: Warranty for 3 years and free Istallation Service

5: Pure sine wave output, true on-line dual conversion design

Key Features

1) DSP digital control technology

Core system uses the world's most advanced all-digital DSP control technology, which can effectively guarantee the UPS' core system accurate, and fast running.

2) Advanced IGBT inverter technology

Combined high-reliable and high-efficiency IGBT inverter technology with high-frequency Pulse Width Modulation technology (PWM).
It could reduce noise and power loss, to ensure users can load in a variety of working situations and obtain high-quality voltage output and maximum cost-effectiveness, but also make input efficiency more than 95%.
3) Pure-online double conversion technology
Reliable and stable, after filtered and regulated, the output sine wave from pure-online double conversion technology, not only has the atmospheric disturbance suppression filter, but also with the standard output isolation transformers, static bypass, maintenance bypass, make this product with higher ability to engage in short circuit current. And it can be applied to the worst working environment.

4) Powerful communication system
The standard equipped with RS232 interface, do contact relays, emergency switching device EPO input interface.

Application
Large-medium computer data center, industrial process and other mission-critical equipment
