Certification:CE, FCC, IP65

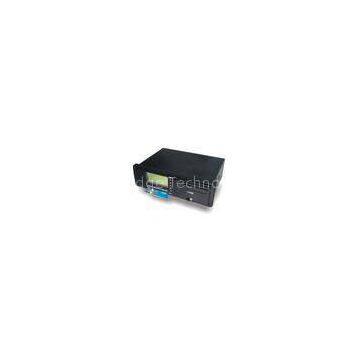

Vehicle SD Card GPS Digital Tachograph With Internal Printer
Integrate GPS tracking/monitoring, display screen, printer, driving recorder, SD card video recorder, IC card reader, USB interface, multi-routes data serial port, build-in microphone and speaker, all the module is thinkable can be integrated. Vehicle standard installation structure design and integration structure, it is easy to install.
Meet the requirements of national standard GB-T19056-2003/Guangdong DB44/T578.
|
Technical specifications |
|
|
Working voltage |
9～33 V/DC |
|
Limiting voltage |
100V/DC |
|
Car battery protecting voltage |
Low: 9V (12V car battery)or 20V (24V car battery)high: 36V |
|
Power voltage of Anti-reversed connection |
≥100V |
|
Average working current |
90mA DC 12V |
|
Power saving mode |
＜20mA DC 12V |
|
Backup battery |
Working time 1h |
|
Dimension |
140x 180x 60mm(L x W x H) |
|
Canning material |
Panel: industry plastic, case: electrolysis steel plate |
|
Main device weight |
1.52kgnet weight |
|
Interface |
|
|
GPS antenna |
SMA interface: －26dB |
|
GSM antenna |
SMA interface: －3dB |
|
Vehicle detecting interface |
11 routes signal input |
|
Analog quantity interface |
2 routes analog signal input |
|
Output interface |
3 routes low level output |
|
SD card interface |
SD memory card |
|
Video interface |
Serial video input, can be expanded to 4 video cameras |
|
Voice interface |
2 routes voice interface |
|
Data interface |
4 routes RS-232 serial port, 1 route USB interface |
|
IC card |
Contact-type driver IC card |
Main Features:
● Based international newest chip, multiple core structure, powerful
● Modularized function design, integrated car GPS tracking, dispatching and management…
● Integration industrial structure design, satisfy the standard of vehicle installation
● Build-in TTS voice report feature
● With SD card interface, high capacity memory to achieve video record and store video to SD card
● It can update remotely, easy to maintain
● Broad intelligence interface to achieve automatic report station for bus, LED screen to release Ads.
● Strong expansibility with module design, it can expand 3Gwireless image transmission.
Product Functions:
1. Signal detecting and control: 13 routes signal sensor, 17 vehicle status detecting, intelligence mode and forced mode to cut fuel/circuit; use-defined backup output control.
2. Alarm: 19 alarms, 3 modes of alarm.
3. Monitoring: vehicleautomatic tracking/monitoring, region setting, geo-fence, GPS mileage statistics, vehicle mileage statistics, blind area supplementary report, trace storage, base station positioning.
4. Road detecting: road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…
5. Voice and phone call: hands free phone, remote listen in, voice reminds device, TTS voice report.
6. National standard/local standard: display communication info/vehicle driving info, collect/store info, recognize driver ID, parameters setting, import/export data and print out info.
7. Display Screen: single color screen to display info like tracking, driving, dispatching and etc.
8. Image: monitor by image, store image to SD card, image transmission.
9. Remote update: main device’s program was support to
