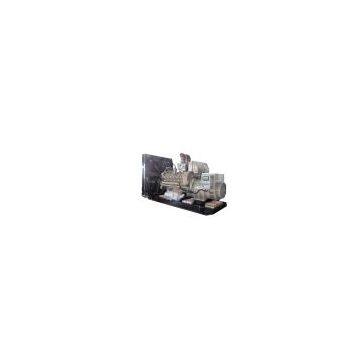

Diesel generator set has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability.Special noise elimination setting restrains machinery noise to be lowered below 65db
Specifications:
1.Output range:8KW(10KVA)-400KW(500KVA)
2.Noise level:below to 65db by 7m distance
3.Sound attenuated enclosure:special noise elimination setting restrains the machinery noise and the unit has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability
4.Water-cooled
5.8hrs operation base tank
6.Key start/auto start
7.Sound-proof/weather-proof canopy is optional
8.230/400VAC,50/60Hz,0.8pf three-phase and four wires alternating current output
9.Frequency:<3%
10.Frequency at stable state:<0.5%
11.Frequency deviation at instantaneous state:<+10%
12.Frequency return time:<3s
13.Voltage deviation at stable state:<+1%
14.Voltage deviation at instantaneous state:<+20%
15.Voltage return time:<4s
16.Voltage modulation:<0.3%
17.Standard configuration of gensets:
(i)Engine:Deutz,Perkins,Steyr,Cummins and Weichai series diesel engine.
(ii)Engine type:water-cooled, in line four-stoke,Humit cylinder liner,direct injection.
(iii)Alternator:Marathon brushless alternator
18.Control system:
(I)Automatic alarm system:the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat,the water is over temperature, the oil pulls down, over speed, over load and over current.
(II)Operation display:
(i)unit voltage,tri-phase load current and frequency display
(ii)water temperature,oil pressure display
(iii)Fuel level,fuel temperature display
(iv)Audible and visual alarm lamps and buzzers
19.Starting system:DC alternator is used to start engine
20.Short circuit protection:MCCB air switch
oling system:combined cooling water tank fitted to meet the requirment of radiation at ambient temperature 40
22.Filter system:oil,fuel,and air filter
23.Accessories:exhaust elbow,bellow,muffler
24.Supply standard collocation:
(a)Diesel engine with all accessories, 3filter,electric systems
(b)Alternator
(c)Steel structure
(d)Fan and water tank cooling system
(e)Flange connector
(f)12/24V starting motor and charge engine
(g)Air cleaner,fuel cleaner,oil cleaner
(h)On-board control panel
(i)MCCB air conservation switch
(j)12/24V starting accumulator and battery line
(k)Set shock absorber
(l)High-efficient silencer
Packing: wooden case
