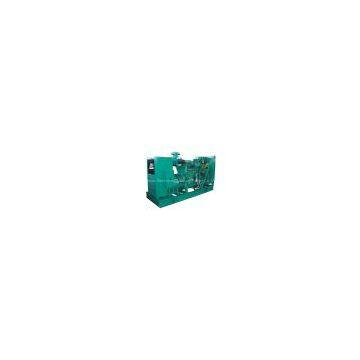

Cummins Series Diesel Generator

This series diesel generator set is powered by Cummins series diesel engine .
Specification of super silent diesel generator:
1. Output range:40KW(50KVA) up to 800KW(1,000KVA)
2. Engine model:4BTA3.9-G,6BT5.9-G,6BTA5.9-G,6BTAA5.9-G,6CTAA83-G,NTA855-G,KTA19-G,KTAA19-G,KT38-G,KTA38-G,KTA50-G
3. Alternator:Stamford,Leroy Somer,Marathon series
4. Water-cooled
5. 8hrs operation base tank
6. Key start/auto start
7. Sound-proof/weather-proof canopy is optional
8. 230/400VAC,50Hz/60Hz,0.8pF three phase and four wires alternating current output
9. Frequency:≤3%
10. Frequency at stable state:≤0.5%
11. Frequency deviation at instantaneous state:≤+10%
12. Frequency return time:≤3s
13. Voltage deviation at stable state:≤±1%
14. Voltage deviation at instantaneous state:≤+20%
15. Voltage return time:≤4s
16. Voltage modulation:≤0.3%
17. Standard configuration of gensets:

18.Control system:
a.unit voltage,tri-phase load current and frequency display
b.water temperature,oil pressure display
c.fuel level,fuel temperature display
d.audible and visual alarm lamps and buzzers
19. Starting system:DC alternator is used to start engine
20.Short circuit protection:MCCB air switch
21.Cooling system:combined cooling water tank fitted to meet the requirement of radiation at ambient temperature40
22.Filter system:oil,fuel and air filter
23.Accessories:exhaust elbow,bellow,muffler
24.Supply standard collocation:
