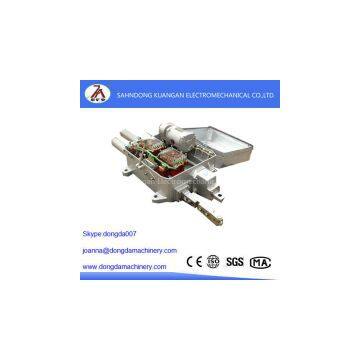

ZD6 electric switch machine Introduction:
Series of ZD6 electric switch machine is used for railway electric centralized station, is used to change the direction of the switch opening, locking switch point rail, which reflects the various conditions of rail position of tongue rail equipment.
Switch machine technical parameters
ZD6-A165/250,ZD6-D165/350,ZD6-E190/600,ZD6-F130/450,ZD6-G165/600,ZD6-H165/350,ZD6-J165/600,ZD6-K190/350
Z - switch machineD – electric6--design the serial number

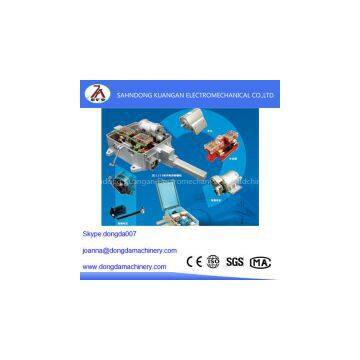

Switch machine technical The main structure
Forced the motor
Forced the reducer
Forced the friction coupling
Forced conversion locking device
Forced open and close automatically
Forced the crowded bifurcation protection and alarm device
Forced the interrupt controller (also known as safety contact)
Switch machine technical Working environment:
The atmospheric pressure not less than 70 kpa (altitude does not exceed 3000 m);
Ambient air temperature to 40 ℃ ~ 70 ℃;
Air relative humidity is not more than 90% (25 ℃);
No explode danger around the harmful gas.
Operating voltage: DC 160 v
The motor rated torque :0.88 N.m
