Mine Electric Control Switch Device Introduction:
ZKC127 Mine Electric Control Switch Device is mainly used for automatic control of coal mining roadway switch, instead of "artificial switch". The automatic control device is composed of a motor vehicle driver with a transmitter (or button) control switch. The switch monitor on the switch to display the switch position.
Mine Electric Control Switch Device Advantages:
Simple structure, reliable operation, convenient maintenance, improve working conditions and transport efficiency.

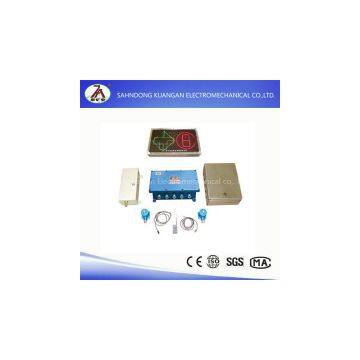

Mine Electric Control Switch Device Structure:
1.Switch controller
2.Switch device transmitter
3.Switch device display
4.Mine intrinsically safe type position sensor
5.Mine intrinsically safe control button
6.Mine intrinsically safe pneumatic solenoid valve
Mine Electric Control Switch Device Functions:
1. PCL Control System: When the controller receives the transmitter signal ,then can control the actuator (cylinder or oil cylinder ),move the switch.
2. Display Function: The monitor can display the switch current location
3. Tips Functions：When the switch both sides is not in right place, the monitor does not display switch position
4. Transmitter remote control distance ：0~50m(no cover)
5. Remote control Angle: 0~360°
6. High Sensitivity, Operating time: ≤3s
The main components and technical parameters:
ZLC-127K type switch controller
1. Rated voltage: AC 127V 50Hz
2 . Rated power: 40W
3.Intrinsically Safe Parameter: U: DC 12.5V ,I:1A
