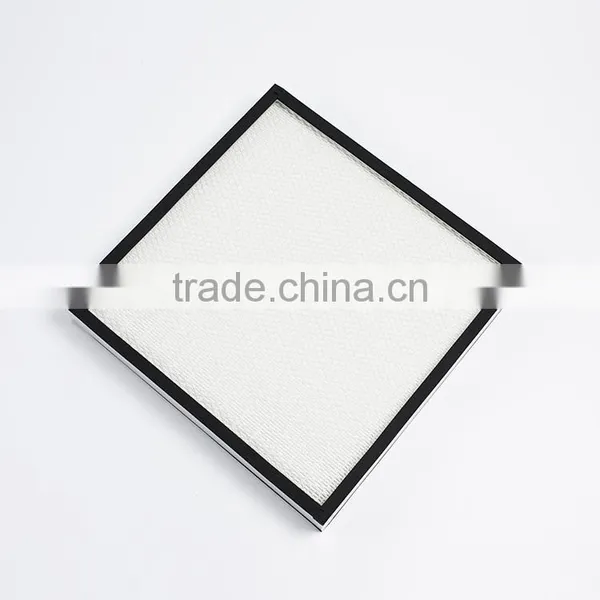

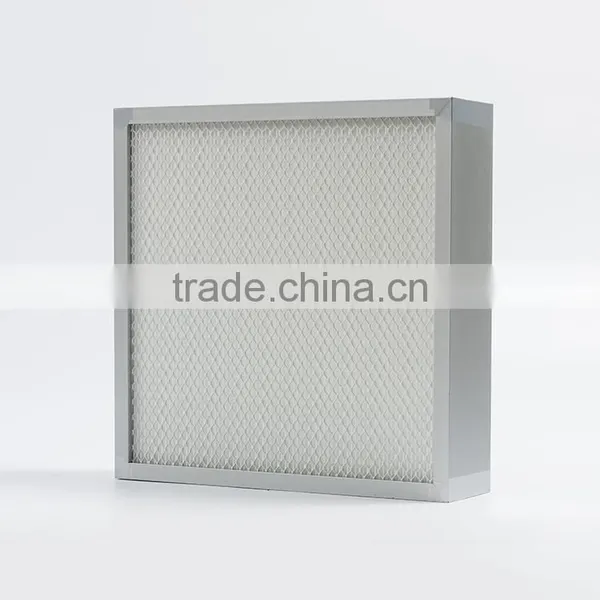

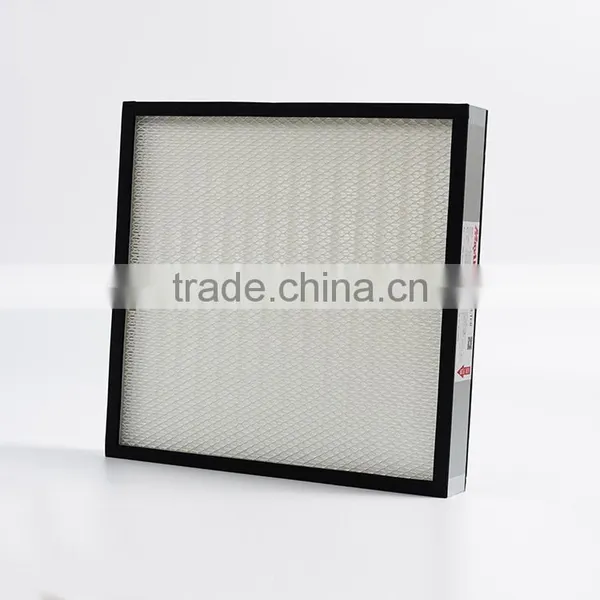

Help CenterQuality Assurance Mini-pleat HEPA Air Filter
Related Products
-
Quality H10-U17 Mini-pleat High Efficiency Factory Hepa FilterUS$ 1 - 80MOQ: 1 Piece -
Quality F5-F9 Manufacturer Air Filter Asphalt Mixing Pocket FilterUS$ 1 - 50MOQ: 1 Piece
-
Large Air Volume Hepa W Shape Composed Hepa Filter PriceUS$ 1 - 80MOQ: 1 Piece
-
Quality H10-U17 Mini-pleat General Ventilation Air FiltersUS$ 1 - 80MOQ: 1 Piece
-
Advanced Technology Low Resistance HEPA Air Clean FilterUS$ 1 - 80MOQ: 1 Piece
Technical date sheet
W*H*D (mm) |
Area (m2) |
Efficiency |
Airflow(CMH) |
Initial Pressure(Pa) |
Airflow (CMH) |
Initial Pressure (Pa) |
600*600*150 |
10.60 |
H13 |
450 |
85 |
580 |
110 |
H14 |
95 |
125 |
||||
610*610*150 |
10.97 |
H13 |
465 |
85 |
600 |
110 |
H14 |
95 |
125 |
||||
1170*570*150 |
20.08 |
H13 |
840 |
85 |
1080 |
110 |
H14 |
95 |
125 |
||||
1210*610*150 |
21.88 |
H13 |
915 |
85 |
1175 |
110 |
H14 |
95 |
125 |
||||
1220*610*150 |
22.46 |
H13 |
935 |
85 |
1205 |
110 |
H14 |
95 |
125 |
||||
Recommended final pressure: 2 to 3 times of initial pressure drop. (Pressure range ±15%) | ||||||
| Type | Mini-pleated Hepa Filter, Class E10 to U16 |
| Media | Glass fiber paper |
| Frame | Extrided and anodized aluminum/ stainless steel |
| Separator | Hot-melt glue |
| Sealant | Polyurethane |
| Recommended final pressure drop | 300 pa |
| Temperature | 90 ℃ maximum in continous service |
| Application | As final filter for industrial clean room |
Advantage:
1. Ultra-fine glass fibre paper, good stability of filtration effiency.
2. 95 pleats/feet, 20 % higher than mormal product, bring lower resistance and longer life.
3. Perfect structure of ‘V’ shape, effectively reduce the system.
4.Light, compact structure.
5.Double side retainers.
6. Individually tested according to EN 1822
Features:
1. Mini-pleat design, operational cost saving
2. Wide application, compact design, space-saving
3. Ultra-thin design, installation space-saving
4. Efficiency:99.95%@MPPS(H13)
99.995%@MPPS(H14)
99.9995%@MPPS(U15)
99.99995%@MPPS(U16)(EN1822)
Applications:
Applicable to clean room and other area with stringent clean air requirements
Applicable conditions
Working temperature(℃) ≤ 70(158℉)
Mini-pleat filter
It applies the most advanced imported production lines around the word and filter medium applies high performance imported superfine glass fiber filter paper or PTFE composite material while spacer is good quality hot melt adhesive. Many kinds of efficiencies and adhesive spray modes are provided to customers for choice. Mini-pleat air filter applies specialized high performance glass fiber or PP fiber as filter medium while spacer is good quality hot melt adhesive. Wide size are available.
