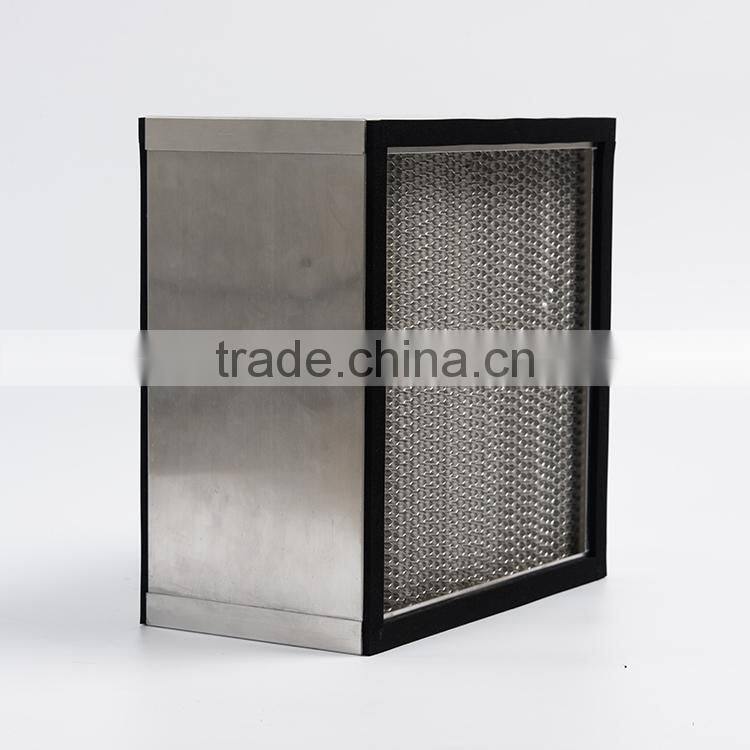

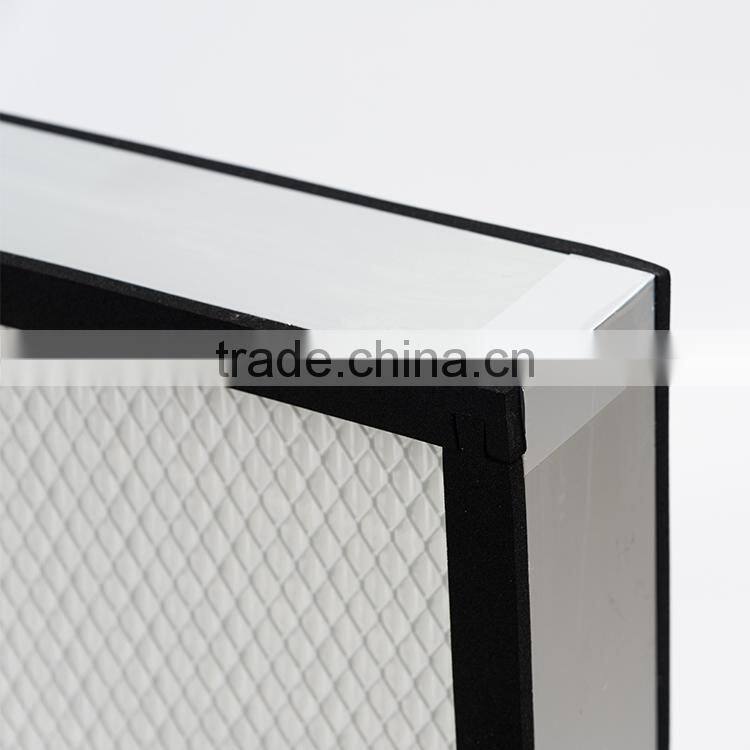

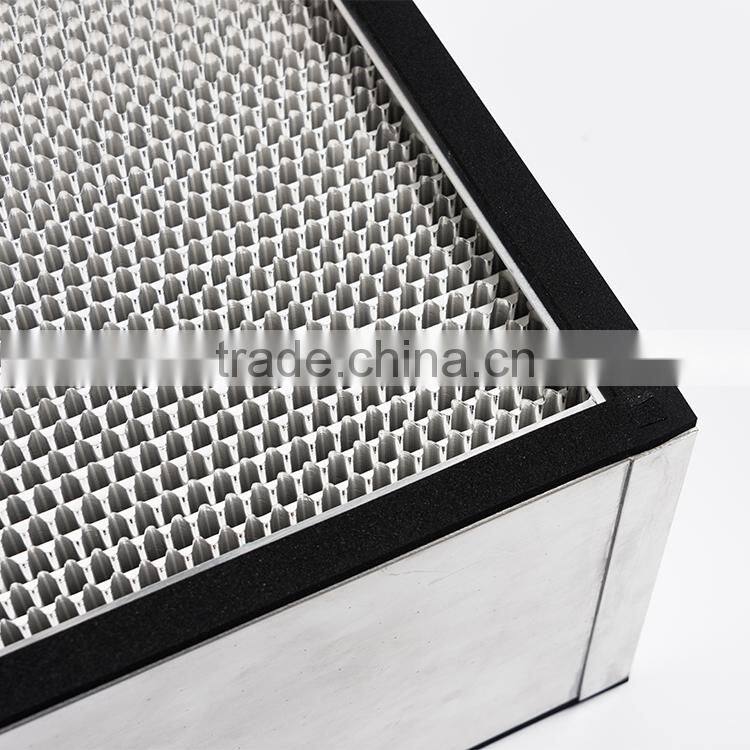

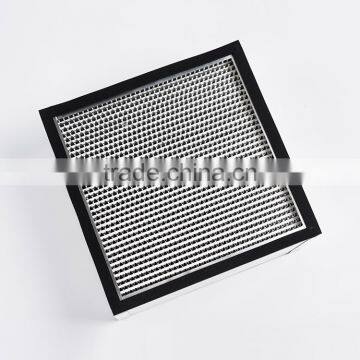

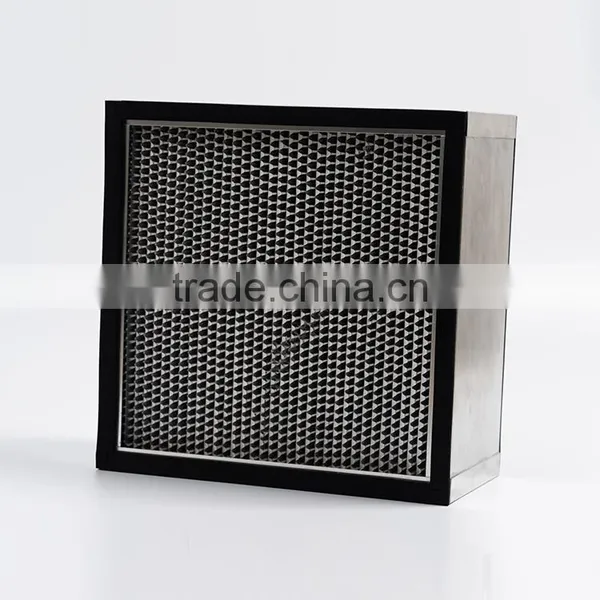

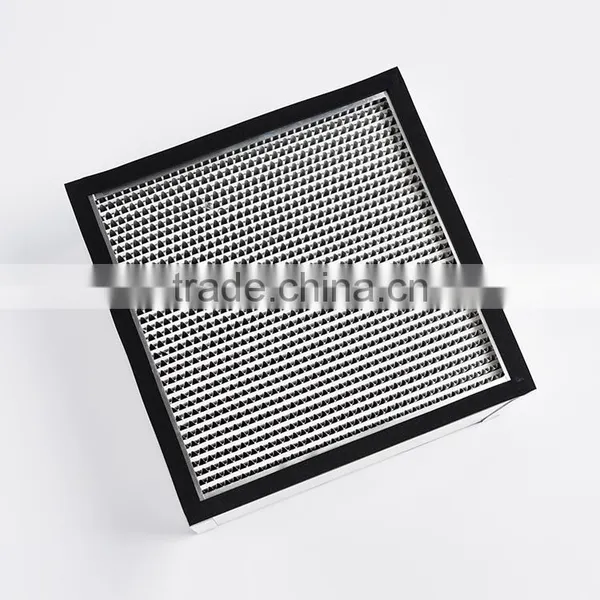

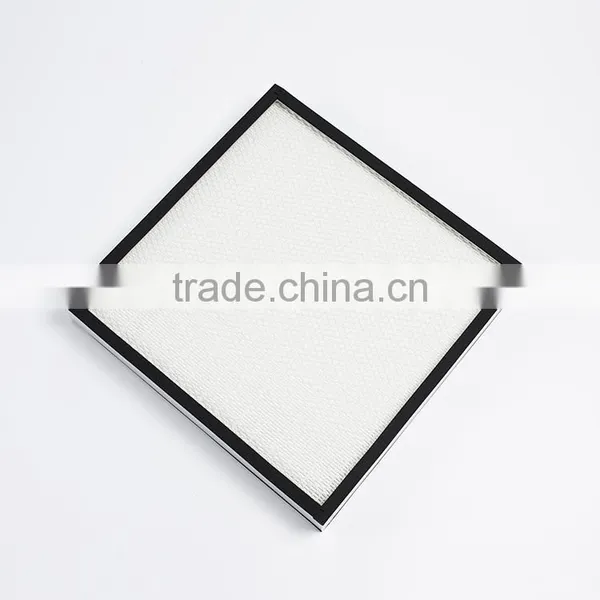

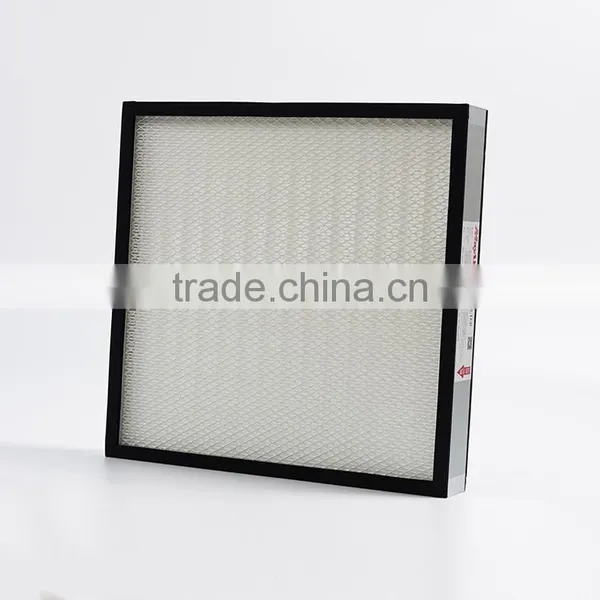

Help CenterQuality H10-U17 Mini-pleat General Ventilation Air Filters
Related Products
-
Advanced Technology Low Resistance HEPA Air Clean FilterUS$ 1 - 80MOQ: 1 Piece -
Cleanroom Air Filter Hepa H13 11 FilterUS$ 5 - 100MOQ: 50 Pieces
-
Customized 99%-99.99% Efficiency Hepa Filter Air FilterUS$ 10 - 60MOQ: 50 Pieces
-
Quality H10-U17 Hot Sale H13 99.99% Hepa Filter for Air ConditioneUS$ 1 - 80MOQ: 1 Piece
-
Hepa Filter Air Filter Window Dust FilterUS$ 10 - 60MOQ: 50 Pieces
Technical date sheet
W*H*D (mm) |
Area (m2) |
Efficiency |
Airflow(CMH) |
Initial Pressure(Pa) |
Airflow (CMH) |
Initial Pressure (Pa) |
600*600*150 |
10.60 |
H13 |
450 |
85 |
580 |
110 |
H14 |
95 |
125 |
||||
610*610*150 |
10.97 |
H13 |
465 |
85 |
600 |
110 |
H14 |
95 |
125 |
||||
1170*570*150 |
20.08 |
H13 |
840 |
85 |
1080 |
110 |
H14 |
95 |
125 |
||||
1210*610*150 |
21.88 |
H13 |
915 |
85 |
1175 |
110 |
H14 |
95 |
125 |
||||
1220*610*150 |
22.46 |
H13 |
935 |
85 |
1205 |
110 |
H14 |
95 |
125 |
||||
Recommended final pressure: 2 to 3 times of initial pressure drop. (Pressure range ±15%) | ||||||
| Type | Mini-pleated Hepa Filter, Class E10 to U16 |
| Media | Glass fiber paper |
| Frame | Extrided and anodized aluminum/ stainless steel |
| Separator | Hot-melt glue |
| Sealant | Polyurethane |
| Recommended final pressure drop | 300 pa |
| Temperature | 90 ℃ maximum in continous service |
| Application | As final filter for industrial clean room |
Advantage:
1. Ultra-fine glass fibre paper, good stability of filtration effiency.
2. 95 pleats/feet, 20 % higher than mormal product, bring lower resistance and longer life.
3. Perfect structure of ‘V’ shape, effectively reduce the system.
4.Light, compact structure.
5.Double side retainers.
6. Individually tested according to EN 1822
Features:
1. Mini-pleat design, operational cost saving
2. Wide application, compact design, space-saving
3. Ultra-thin design, installation space-saving
4. Efficiency:99.95%@MPPS(H13)
99.995%@MPPS(H14)
99.9995%@MPPS(U15)
99.99995%@MPPS(U16)(EN1822)
Applications:
Applicable to clean room and other area with stringent clean air requirements
Applicable conditions
Working temperature(℃) ≤ 70(158℉)

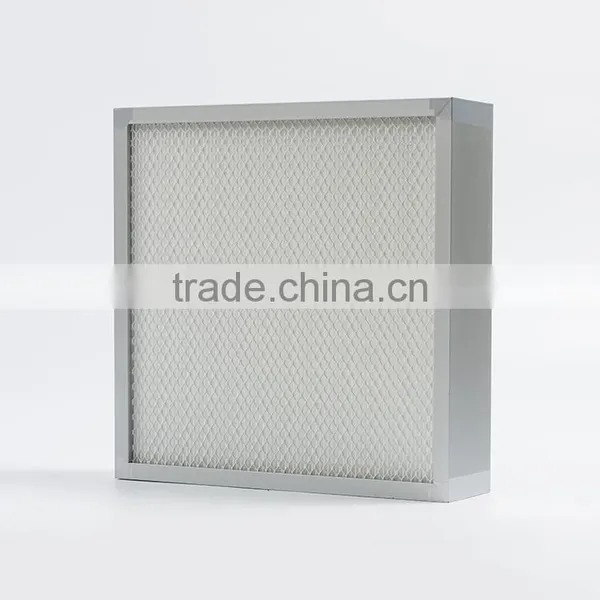

Mini-pleat filter
It applies the most advanced imported production lines around the word and filter medium applies high performance imported superfine glass fiber filter paper or PTFE composite material while spacer is good quality hot melt adhesive. Many kinds of efficiencies and adhesive spray modes are provided to customers for choice. Mini-pleat air filter applies specialized high performance glass fiber or PP fiber as filter medium while spacer is good quality hot melt adhesive. Wide size are available.
