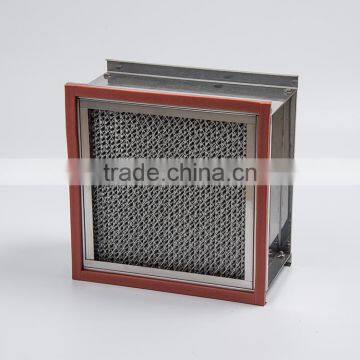

Help CenterLow Resistance Separator Hepa Air Filter
Related Products
-
Deep Pleated Mini Pleated Hepa Filter PriceUS$ 10 - 20MOQ: 1 Piece -
Quality Assurance Mini-pleat HEPA Air FilterUS$ 10 - 60MOQ: 50 Pieces
-
Quality H10-U17 Mini-pleat High Efficiency Factory Hepa FilterUS$ 1 - 80MOQ: 1 Piece
-
Quality F5-F9 Manufacturer Air Filter Asphalt Mixing Pocket FilterUS$ 1 - 50MOQ: 1 Piece
-
Large Air Volume Hepa W Shape Composed Hepa Filter PriceUS$ 1 - 80MOQ: 1 Piece
| Type | HEPA filter with clapboard |
| Media | Glass fiber paper |
| Frame | Galvanised steel/ stainless steel |
| Separator | Aluminum foil/paper foil |
| Recommended final pressure drop | 500 pa |
| Temperature | 90℃ maximum in continuous service |
| Application | As final filter for industrial clean room, the part where higher wind speed is needed |
Advantage:
1. Ultra-fine glass fibre paper, ensures that filter keep its good effiency throughout operation life.
2. pleat dstance can be to 3 mm( or 5 mm, 7 mm).
3. Double side retainers, provide adequate protection for filter.
4. Mutual embedded housing ensures high strength structure
5. Non flange, single flange or double flange boxes are available for frame
6. Individually tested according to EN 1822.
Features:
1. Ultra-fine glass fiber as filter media.
2. Separator design, high efficiency, low pressure drop, high dust loading capacity.
3. Applicable to VAV system.
4. Efficiency: 65%(M6),85%(F7),90%(F8),95%(F9)(EN779),99.95%@MPPS(H13),99.995%@MPPS(H14) (EN1822)
Applications:
1. AC ventilation system of clean room, commercial building and industry
2. AC ventilation system with high relative humidity.
3. VAV system.
4. AC ventilation system with limited space.
5. AC ventilation system with high temperature resistant and fireproof requirements.
6. Area with high air cleanliness requirement.
Good quality and high performance super fine glass fiber, over-length glass fiber, pp fiber filter paper and so on are used as filter medium and aluminum foil or two-sided offset paper is used as spacer. Many kinds of efficiencies, from medium efficiency (M6~F9),Sub-high efficiency(H10~H12)to high efficiency(H13~H14),are provided to customers for choice. Wide size are available.
