High Lumen Samsung 40 Watt 300x1200 Suspended Ceiling Led Panel Light 0-10V

High Lumen Samsung 40 Watt 300x1200 Suspended Ceiling Led Panel Light 0-10V thumbnail-1
High Lumen Samsung 40 Watt 300x1200 Suspended Ceiling Led Panel Light 0-10V photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HYH
Place of Origin:
China
Model Number:
HYH-P40W-30120
Contact Supplier Request Quote Chat Now
Shenzhen Huayihui Optoelectronic Technology Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HYH
Place of Origin China
Model Number HYH-P40W-30120
Delivery Time:3 days for sample,12-15days for mass-order
Certification:CE/RoHS/FCC

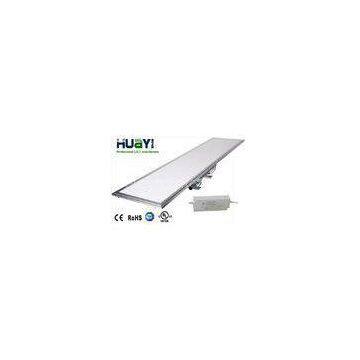

High Lumen Samsung SMD5630 40W 0-10V Dimmable 6000K Suspended 300x1200 LED Panel CE ROHS listed

LED Flat Panel Lighting Specifications:

Brand

HYH

Part No.

HYH-P40W-3120

LED Type

Samsung SMD5630

Power Consumption

40w

Color Temperature

ww 2700-3000K/ nw 4000-4500K/ pw 5000-5500K
CW 6000-6500K

Luminous Flux

3600lm ±5%

Color

Warm white;Nature white;Cool white

Dimension

295X1195X9mm

CRI

>75 /80

Power Factor

>0.99

Input Voltage

AC 85v~265v

Frequency Range

50~60Hz

Material of Body

aluminum alloy

IP rating

IP40

Operating Temperature

-20~50 degrees Celsius

Net Weight

4.0kg

Gross Weight

4.5 g

Dimmable Feature

Triac Dimmable /  0-10V dimmable / Dali Dimmable is avialble

Life Span

50,000H

Warranty

3 years



LED Flat Panel Lighting Features:


High brightness Samsung 5630 chip High efficiency isolated driver, Constant Current Control IC for Transmission Over 90% light transmission makes the light softly and brightly Low maintenance cost. Life span: >50,000 hours Instant on no flicker or hum Emit NO UV or IR radiation, environmentally friendly Universal input voltages available for North America, Latin America, Europe, Asia Up to 5 years warranty base on different price and products  Color temperature:2800-7000 Lead time,1000-10000 within 7days,10,000-30,000 within 15days High efficiency constant current drive system, with heat protection system Over 90% light transmission makes the light softly and brightly Low maintenance cost. Life span: >50,000 hours Instant on no flicker or hum Emit NO UV or IR radiation, environmentally friendly Universal input voltages available for North America, Latin America, Europe, Asia  Materilas:ultra-thin 8mm aluminum frame with high light penetration rate diffused board,PVC kind,the light efficiency for a whole lamp can get to 80lm/w,the color of frame be the silver and white-painted available. Light source:choose the best quality and high bright SMD 2835 to be the light source,high bright and high CRI>80Ra,light decay under 3000h<3%,lifespan as 50,000hrs. High stability aluminum shell driver used,isolated constant current driver,with PF>0.95,efficiency >85%,LVD&EMC of CE certification approved. Volatge as AC85-265V and ADC12V-24V is all available,both dimmable and remote control is availble. .


LED Flat Panel Lighting Advantage:


Super slim and efficient design                                                         Unique extruded aluminum with very slim design (12mm thickness), lighting comes all around into light guide panel, more efficient heat dissipation, lowers the light decline efficiently. Ensure the lumen output maintenance factor above 80%, after using 35,000 hours. High light efficient and energy saving Bigger chip super Brightness SMD LED used as light source, the whole lamp with high intensity, and energy saved up to 50% Long Life-span With top-quality SMD LED, and good heat dissipation, make sure the life-span up to 5 years. Top quality light effect The whole panel with top quality light effect, instant start, no UV & heat radiation, no electric wave, no flickering, no humming, it’s an ideal green and environmental lighting. Special heat New inner high efficient (95%) heat protection system, the constant current driver can work under unstable voltage. Environmental friend Safe and durable, can be cyclic utilization, no such hazard for lead or Mercury enter the environment. High safety coefficient The whole lamp is with high safety coefficient. With wide working volta
