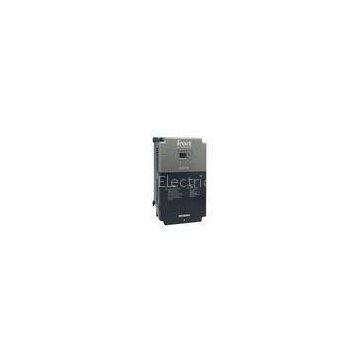

EC100 Single Phase Elevator Inverter 220V 47Hz - 63Hz PG Vector Control

Item

Name

Description

Input/output characteristics

Input voltage range

AC220V±15%；AC380V±15%

Input frequency range

47~63Hz

Output voltage range

0~Rated input voltage

Output frequency range

0~400Hz

Peripheral Interface Features

Digital low voltage input

29 channels, DC 24V/4.5~8mA

High-voltage detector input

3 channels, AC/DC 110V

Digital output

12 channels

CAN communication port

3 channels

Encoder port

Embedded sin&cos, collector NPN output,

 push-pull output port of the encoder

Technical control characteristics

Control mode

PG vector control

Overload capacity

150% of the rated current: 60s
180% of the rated current:10s

Starting torque

PG vector control: 0Hz/180%

Speed control accuracy

PG vector control: ±0.1% of the Max. speed

Carrier frequency

1.0kHz~16.0kHz

Model

Input voltage

Output power(kW)

Output current(A)

Braking unit

Min.braking resistance

EC100-1R5-S2

Single-phase 220V±15%

1.5

5.5

Embedded

120Ω/400W

EC100-2R2-S2

2.2

11

Embedded

100Ω/1000W

EC100-004-2

3AC220V±15%

4.0

18.5

Embedded

35Ω/1200W

EC100-5R5-2

5.5

27.0

Embedded

25Ω/1500W

EC100-7R5-2

7.5

34.0

Embedded

20Ω/2000W

EC100-011-2

11.0

46.0

Embedded

15Ω/4000W

EC100-015-2

15.0

62.0

Embedded

10Ω/4500W

EC100-018-2

18.5

75.0

External DBU-055-4

8Ω/5000W

EC100-004-4

3AC380V±15%

4.0

11

Embedded

75Ω/1200W

EC100-5R5-4

5.5

13

Embedded

55Ω/1500W

EC100-7R5-4

7.5

18.5

Embedded

50Ω/2000W

EC100-011-4

11.0
