Certification:CE/ISO9001/IEC60898

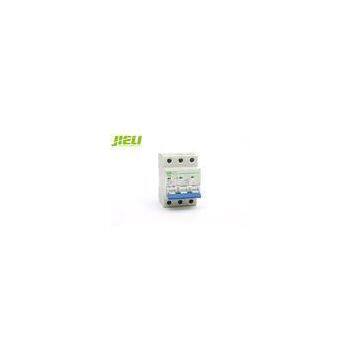

32 amp 2 Pole / 3 Phase Circuit Breaker Motor Protection 10A 16A 20A 50A 63A
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model Number: |
MN11-1 3 Phase circuit breaker |
|
Type: |
Mini |
Poles Number: |
2,1P 2P 3P 4P |
Rated working voltage: |
230V/400V |
|
Service: |
OEM/ODM |
Rated frequency: |
50/60Hz |
Protection degree: |
2 |
|
Rated current in: |
1 2 3 4 6 10 16 20 25 32 40 50 63 |
Description:
1. MN11-1 3 phase circuit breaker, as a representative of \"harmony\" series product,JIELI owned completely independent intellectual property right.
2. MN11-1 Series 3 phase circuit breaker is designed according to the market research, which means the 3 phase circuit breaker has a ready market.
3. MN11-1, this type of 3 phase circuit breaker, has two kinds of function, overload and short circuit protection. The rated capacity of shortcircuit (ICU) of MN11-1 3 phase circuit breaker is up to 6000.
4. MN11-1 3 phase circuit breaker, this kind of product is in superior quality and the price is competitive. The most important is that JIELI electrical company is in good faith to ensure safety.
Applications:
MN11-1 3 phase circuit breaker,Low voltage circuit belongs to the advanced level of the nineties in
the world instead of the old generation of C45N.MN11-1 3 phase circuit breaker have protective functions as shortage and overloading, and are used in lighting distribution system in industry, commerce and dwelling, and protect fractional electric motors.
And MN11-1 3 phase circuit breaker also have many merits of high protective grade (up to IP20), high breaking capacity, good reliability of sensitive action, convenient multi -pole assorting, long using life etc. MN11-1 3 phase circuit breaker are mainly adapted to the circuit of AC 50Hz,230V in single pole,400V in double, three on four poles for protecting overload and shortage. Meanwhile, MN11-1 3 phase circuit breaker are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.
Specifications:
|
Item name : |
MN11-1 3 phase circuit breaker |
|
Standard : |
IEC60898/GB10963 |
|
Product Certifications : |
CE,CB,3C |
|
Product Function : |
Short circuit protection, Over current protection |
|
Rated current(A) : |
1A-5A, 6A-63A, 80A-125A |
|
No of pole : |
1P,2P,3P |
|
Rated voltage(V) : |
230/400V |
|
Rated frequency(Hz) : |
50/60 |
|
Fiducial temperature : |
30°C |
|
Environment temperature : |
-35~70°C |
|
Installation style standard : |
35mm guide |
|
Connection type : |
Tunnel style, Pin style, U style |
|
Biggest wiring ability : |
25mm2 |
|
Magnetic tripping curve : |
B(3-5In),C(5-10In),D(10-20In) |
|
(ICU)Rated capacity of short circuit: |
