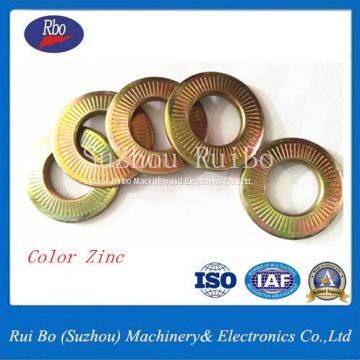

Stainless Steel NFE25511 French Standard Washer With ISO
![]() | ![]() |
![]() | ![]() |

| d | dc | h | H | |||||
| Nominal Diameter | Max | Min | Nominal | Tolerance | Nominal | Tolerance | Max | Min |
| 3 | 3.35 | 3.1 | 6 | ±0.24 | 0.5 | ±0.03 | 0.9 | 0.7 |
| 8 | ±0.29 | 0.6 | 1 | 0.8 | ||||
| 10 | ±0.29 | 0.6 | 1.2 | 0.95 | ||||
| 4 | 4.4 | 4.1 | 8 | ±0.29 | 0.8 | 1.2 | 1 | |
| 10 | ±0.29 | 0.9 | ±0.04 | 1.4 | 1.15 | |||
| 14 | ±0.35 | 1 | 1.8 | 1.4 | ||||
| 5 | 5.4 | 5.1 | 10 | ±0.29 | 1 | 1.6 | 1.25 | |
| 12 | ±0.35 | 1.1 | 1.8 | 1.45 | ||||
| 16 | ±0.35 | 1.2 | 2.1 | 1.7 | ||||
| 6 | 6.4 | 6.1 | 12 | ±0.35 | 1.2 | 1.85 | 1.55 | |
| 14 | ±0.35 | 1.3 | 2.1 | 1.75 | ||||
| 18 | ±0.35 | 1.4 | 2.5 | 2.1 | ||||
| 8 | 8.58 | 8.2 | 16 | ±0.35 | 1.4 | 2.2 | 1.8 | |
| 18 | ±0.35 | 1.4 | 2.35 | 1.9 | ||||
| 22 | ±0.42 | 1.4 | ±0.05 | 2.7 | 2.2 | |||
| 10 | 10.56 | 10.2 | 20 | ±0.42 | 1.6 | 2.6 | 2.1 | |
| 22 | ±0.42 | 1.6 | 2.75 | 2.25 | ||||
| 27 | ±0.42 | 1.8 | 3.1 | 2.6 | ||||
| 12 | 12.83 | 12.4 | 24 | ±0.42 | 1.8 | 2.9 | 2.4 | |
| 27 | ±0.42 | 1.8 | 3.1 | 2.6 | ||||
| 32 | ±0.5 | 2 | 3.6 | 3.1 | ||||
| 14 | 14.83 | 14.4 | 30 | ±0.42 | 2.4 | ±0.06 | 3.7 | 3.2 |
| 16 | 16.83 | 16.4 | 32 | ±0.5 | 2.8 | 4.1 | 3.6 | |
| 20 | 21.02 | 20.05 | 40 | ±0.5 | 3.2 | 4.9 | 4.3 | |
| Materials | Our Advice For You Below : |
| Spring Steel: 65Mn | ≤200°C,Under Normal Conditions |
| Stainless Steel:SS304、SS316 | ≤300°C,Under Corrosive Conditions |
| Customized As Per Client's Requirements |
