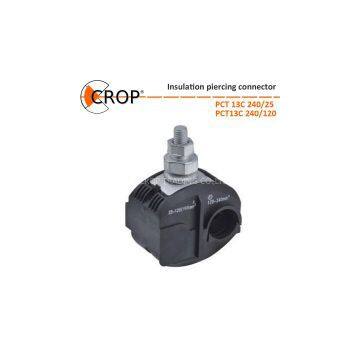

insulation piercing connector

Insulation piercing clamp

PCT13 120/70 &150/150 ,

PCT13C 120/10 ,

PCT13C 70/35 & 95/50

PCT13C 95/95 & 150/150

PCT23 240/150 & 240/240

Our range of insulation piercing connectors accommodates both aluminum and

copper conductors and can be used as a splice or tap for non tension applications.

Purpose of Insulation piercing connectors(IPC) is to connect main and one(PC13),two(PC24) tap conducor's of section,how is written on IPC body.Type without letter B serves to connect isolated conductors,with letter B bare conductors.IPC for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.

IPC consists from two glass-fiber reinforced plastic parts,which are fited with two brass tinned teeth's,which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation.This set is associated with the bolt,nut and pinch fixation segment.The terminals marked T are equipped with tear head. The lower part of the clamp is designed to be hold by the key 17 and the ventilation chamber,providing optimal ventilation of IPC.

Product can be also used as tap connector inside low boltage boxes.

CROP IPC PCT13 120/10   6-120/1.5-10

CROP IPC PCT13C 70/35  6-70/4-35

CROP IPC PCT13C 95/50  6-95/4-50

CROP IPC PCT13C 95/95  25-95/25-95

CROP IPC PCT13 150/150  6-150/6-150

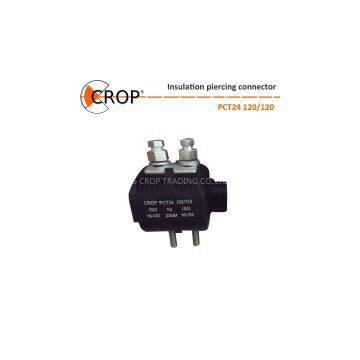

CROP IPC PCT24 120/120  16-120/16-120

CROP IPC PCT24 240/150  120-240/50-150

CROP IPC PCT24 240/240  120-240/120-240
