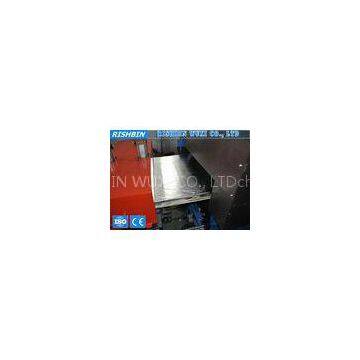

Rubber Belt Polyurethane Sandwich Panel Production Line with Tracking Cutting
Primary Technology Parameters
Production Material(mm):(0.25-1.0)×L, yield strength≤G300 Colored steel
Production speed:4-8 M/min
Production type: totally continuous production with PLC controlling
PU foam thickness: 25-150mm
Composite structure:position fixed by double rubber tracker
Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable
Power of production ≥ 22KW
Total power ≥ 35 KW
Cutting:pneumatic piston driving, non-stop cutting via sliding table
Electronic controlling system: full-frequency PLC controlling system
Brief Introduction
This PU Sandwich panel production line is an automatic production line. In the PU sandwich panel producing procedure, the product line can continuously produce sandwich panel with PU as its core material. The liquid state raw materials were continuously injected into the middle of two steel panels and reacting,foaming,solidifying in the double-rubber belt, the PU sandwich panel could be cut out automatically according to the required length for users.
Equipment List
|
NO. |
Main parts |
QTY |
|
|
1 |
Automatic un-coiler (5 ton) |
2sets |
|
|
2 |
roll forming machine |
2sets |
|
|
3 |
foaming line |
Preheating room |
1stes |
|
PU panel conveyor |
|||
|
Foaming tanks |
|||
|
4 |
Panel automatically cutting system: |
1set |
|
|
5 |
Electric control system: |
1set |
|
|
6 |
production line layout |
1set |
|
|
7 |
chain driven transmission |
1set |
Working Flow
Coiler loading → adjustable feeding guide → steel panel forming → steel sheet feeding guide → PU foaming → PU panel conveyor → non-stop cutting
Flow Chart
Detail specification
1. Two sets of uncoiler
It is Automatic and hydraulic, can be used to uncoil steel coil which is maximal 1300mm\'s wide, no more than 5 ton\'s weight and steel coiler\'s inner diameter is about 500mm.
2. Two sets of roll forming machine
Function: Roll forming for the profiles of PU panel
Use the welding H-beam, motor driver, sprocket chain driving
Technical data: Material of roller NO.45forged steel, with digital controlled procession,plated with hard chrome on surface of forming rollers
3. Pu sandwich foaming line
(1) One preheating room: It is built by heat-insulation material, and it could heat up the steel sheet to 25-38
by heater.
(2) Two sets of conveyor rack: up conveyor is about 24m, down conveyor is about 30m.They lead the steel sheet from the roll forming machine to preheating room and to foaming,to cutting.
(3) One set of PU two component Liquid mixing and injecting section for foaming : it adopt Chinese high pressure pump. It have the temperature control system and material-level monitoring system. The tank of the material is about 150L. Two tanks.
Foaming and double rubber device include motor driver system to make panel.
The width of belt board is 1250mm, the range of adjusting distance between upper and lower frame belt board: min 25mm, max 200mm. And the range of adjusting thickness of sandwich panel :30mm,50mm,100mm.(30-50 for celling , 50-100 for wall)
4. Panel automatically cutting system:
Cutting machine can move 2500mm longitudinally along product line;
fly saw of the cutting machine can move transversely 1900mm, Cutting machine moves longitudinally and
transversely along the slide way.
Cutting machine adopts oneside blade band saw manner, cutting and revolving after cutting. The cutting
saw can
