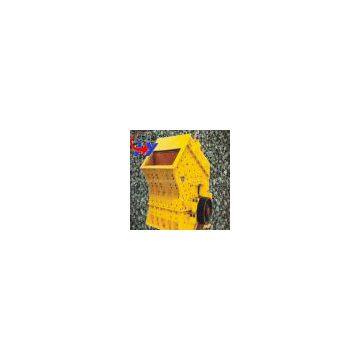

Impact Crusher series
Advantages and characteristics
1.Crushing hard rock
2.Connection with locking sleeve assembly
3.The blow bar with high chrome
4.Hydraulic or hand openrea switch
5.Impact plate with special shape
Brief introduction
This series of impact crusher are designed for crushing ores and rocks with particle sizes less than 120-30202mm and compression strength no more than 350Mpa. It has a feature of big crushing ratio, high-efficiency crushing, cubic shape. Selectable crushing and etc. It is suitable for crushing different compression strength of rocks and is widely used in mining, cement and concrete industries.
The finished products of this series are used in mining, cement and concrete industries, they are used as the second step crushing for stone materials of high level highways, water conservation, building, etc
|
Model |
Size of feed opening(mm*/mm) |
Max. Feed size (mm) |
Capacity(t/h) |
Electric motor power(kw) |
Weight (t) |
Overall dimension (mm) |
|
PF-1007 |
820*700 |
300 |
24-45 |
55 |
9.5 |
2400*1558*2660 |
|
PF-1010 |
1170*720 |
350 |
50-80 |
75 |
10 |
2532*298502196 |
|
PF-1210 |
1090*465 |
350 |
80-130 |
110 |
14 |
2638*2037*2713 |
|
PF-12214 |
1440*465 |
350 |
100-160 |
132 |
18 |
2580*2400*2810 |
|
PF-1315 |
1532*560 |
350 |
140-200 |
200 |
19.3 |
2840*2748*2556 |
|
PF-1316 |
1690*859 |
350 |
150-220 |
200 |
19.5 |
3096*2850*2667 |
