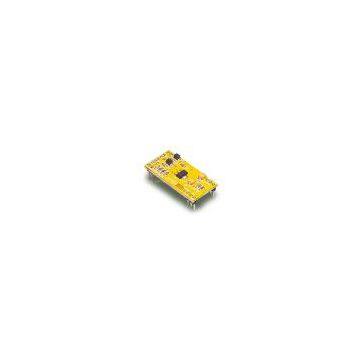

SUPPLY JMY501M RF MODULE(MIFARE CARD)

FOB Price

US$ 15.08 - 15.08 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JMY		Place of Origin	China
Model Number	JMY501M

Product Description

PCD model: NXP MFRC500
Working frequency: 13.56MHz
Card supported: Mifare 1K/4K, FM11RF08, Ultra Light
Anti collision ability: Full function of anti-collision; be able to process multi-cards; be able to set operate single card only
Auto detecting card: Supported, default OFF
EEPROM: 512 Bytes
Power supply: DC 5V (±0.5V)
Interface: IIC & UART (selected by SPS pin, recommend to use IIC)
Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps
Max. command length: 254 Bytes
Interface level: 3.3V (TTL level; 5V tolerance)
Power consumption: 70mA
Reading range: 100mm (depending on card and antenna design)
Dimension: 21mm * 42mm
Package: DIP32
Weight: About 15g
ISP: Yes
Operating temperature: -25 to +85 °C
Storage temperature: -40 to +125 °C
RoHS: Compliant
Normal antenna:
TX500, size: 70mm*70mm, 90mm reading range
TX501, size: 50mm*50mm, 70mm reading range
TX502, size: 30mm*30mm, 60mm reading range
We offer the OEM service.
