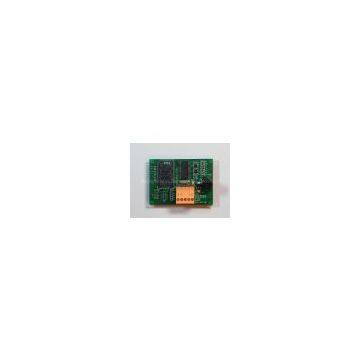

Help CenterSupply JMY680M RF Module(ISO7816 and Mifare Card)
Related Products
-
Sell 13.56MHz Rfid Module JMY601US$ 28.57 - 28.57MOQ: 1 Piece -
Supply JMY501C RFID Reader ModuleUS$ 17.46 - 17.46MOQ: 1 Piece
-
Supply Mifare CardsNegotiableMOQ: 10 Pieces
-
JMY680A RF Module(ISO14443A and ISO7816)US$ 26.98 - 26.98MOQ: 1 Piece
-
Supply JMY680G RFID Reader ModuleUS$ 25.40 - 25.40MOQ: 1 Piece
Model NO.: JMY680M
Mifare card reader/writer module
Antenna: built in
PCD model: NXP MF RC500
Working frequency: 13.56MHz
Card supported: Mifare 1K/4K, FM11RF08, Ultra Light and ISO7816 SAM cards (both T=0&T=1)
Anti collision ability: Full functions anti collision; be able to process multi-cards; be able to set operate single card only
Auto detecting card: Supported, default ON
SAM slot: 1 slot
SAM baud rate: 9600bps/38400bps
ISO7816 PPSS set: supported
EEPROM: 512 Bytes
Power supply: DC 5V (±0.5V)
Interface: IIC/UART/RS232C (select when place order)
Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps
Max. command length: 254 Bytes
Interface level: UART/IIC: 3.3V (TTL level; 5V tolerance)
Power consumption: 80mA
Reading range: 80mm (depending on card)
Dimension: 70mm*50mm*16.5mm
Weight: About 120g
ISP: Yes
Operating temperature: -25 to +85 °C
Storage temperature: -40 to +125 °C
RoHS: Compliant
