Product Specification/Models
Model: SDP-40KW
Type: DC/AC Inverters
Isolation mode: Low Frequency Transformer
DC input rated voltage (Vdc): 300V or 360V
Rated output power: 40KW
Output waveform: Pure sine wave
Phases: three phase 4 wire + ground
Output rated voltage:120/220/230/240/380/400/415VAC optional
Output Frequency: 50Hz or 60Hz
Efficiency: >95%
Display: LCD
Start mode: step down voltage or variable frequency start
Certification: European CE(EMC&LVD)
Features：
Our inverter with very powerful function and the most advanced technology in China:
1) Adopted efficient IPM intelligent module from Japanese Mitsubishi, better than IGBT and MOSFET tube, IPM with powerful protection function for short circuit, over load and over temperature which is more safe and reliable. Intelligentized, modularized,simple structure design, convenient for maintenance. Longer service life can up to 20 years and more
2) Two kinds of start mode: step down voltage start and variable frequency drive.
3) The DC input voltage range(over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point ) and output frequency can be set
4) LCD display, Powerful data display and fault instruction function, set up parameters flexibly.
5) Wide input voltage can be set according to customer's requirement.
Input voltage range can be selected from 100-500v, 200-850v.
6)With Low Frequency Transformer, which ensures that inverter has high efficiency and low no- load loss.
7)Could add AC bypass input: Battery power priority or AC bypass power priority
8)Passed the European CE (EMC and LVD) certification.

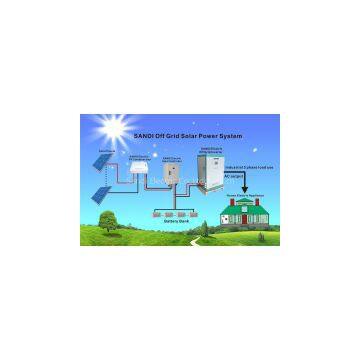

9)The Inverter is suitable for areas without electricity, motor, marine, solar/wind power system
