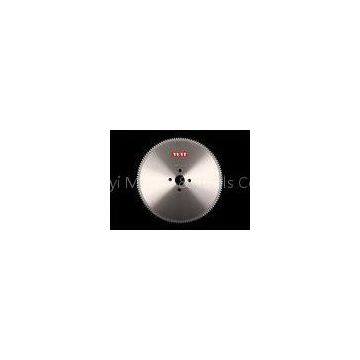

Professional TCT Metal Cutting Blade / Stainless Steel Cutting Blade 285mm 120Z


Cold Saw Blade Metal Cutting Saw Blades / Stainless Steel Cutting Blade 285mm 120Z

Specifications:
285x2.0x1.69x120Z

Product details:

Edge (tip) material: Cermet. Cermet tip imported from Japan, we’re using Mitsubishi or Sanvik. Steel body uses Japanese SKS steel: SKS51 or SKS5. Flattening and Surface grinding ensure the plate that is distortion free and have uniform thickness. Unique design for the angle of tip and unique shape of tip for metal cutting. Unique Heat treatment for the plates, which make sure the plates in good flatness. Special brazing technology makes sure the strength of the teeth so as to prevent carbide breakage. High dimensional accuracy makes sure the operation more smoothly. Unique tension treatment could keep the most stable performance while cutting. Special coating for metal cutting is applied. Suitable for most of metal cutting machines in the world such as Nishijia, Amada, Anderson, Tsune, Mega, Fongho,Soco,Everising, I.T.E.C. etc. Manufacturing with Japanese technology and design in Japan. Remaining cool while cutting and longer the using life. It is Throw-away type and non-resharpenable.

Diameter	Kerf	Plate	Teeth number	Teeth type	Hook Angle	Recommend RPM	Machine	Cutting  material
285mm	2.0mm	1.69mm	120	Cermet tip		180/160	NISHIJIAMA,TSUNE, DELTA,ANDERSON, I.T.E.C,AMADA,MEGA, SOCO,FONGHO, and other suitable metal cutting machine.	Steel pipe

Descriptions:
A cold saw is a sawing machine that uses a circular saw blade to cut metal. The name \"cold saw\" comes from the cutting process they employ. These sawing machines transfer the heat generated by cutting to the chips created by the saw blade. Therefore, the blade and material being cut remain cold, unlike an abrasive saw, which abrades the metal and creates a great deal of heat in the metal and cutting blade.

The new YEYI cermet tipped metal cutting cold saw blade leads the great job for the metal cutting work. Saw blade body use SKS5 or SKS51 steel which is imported from Japan. And with YEYI unique tension technology, the saw blade has a stable and quiet response when cutting.

Unique shape and angle of cermet tip are quite different form the HSS saw blade. Metal cutting could be much easier while using YEYI metal cutting cold saw blade.

The tip using is Cermet tip which is imported from Japan. What is cermet tip?

The cermet is a composite material composed of ceramic (cer) and metallic (met) materials. The cermet is ideally designed to have the optimal properties of both ceramic, such as high temperature resistance and hardness, and those of a metal, such as the ability to undergo plastic deformation. The metal is used as a binder for an oxide, boride, or carbide. Generally, the metallic elements used are nickel, molybdenum, and cobalt. Depending on the physical structure of the material, cermets can also be metal matrix composites, but cermets are usually less than 20% metal by volume.

Cold saw using the cermet tip in order to keep the stability of metal cutting and keep the saw blade cool all the time. So it can increase the cuttinglife.

We use imported brazing machine for brazing the tip and use the Japanese grinding machine for grinding the saw blade teeth.

Application:
Suitable cutting machine: NISHIJIMA, TSUNE, AMADA, ANDERSON, I.T.E.C, FONGHO, SOCO,EVERSIING, MEGA, DELTA Webo and other metal cutting machines.

Cutting materials: steel bar or pipe.

Advantage:

We use Japanese saw blade steel. Body’s quality is much better than other companies. In order to keep the saw blade working stable, every saw blade has the tension treatment by hands. Imported cermet tip (sandivk and Mitsubishi) keeps the excellent cutting performance. All the welding machines and grinding machines are imported from Japan. In order to get the best cutting results, our Japanese technical staff would modify the design after getting the customers’ feedback.


Cutting material recommend:

Diameter	Teeth	Recommend diameter of material
285mm	120	20~30MM

Machines recommend:

Diameter	Machine manufacturer	Machine model
285mm	No
