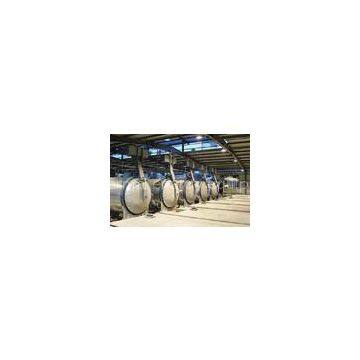

AAC Autoclave / Sand Lime Brick /Aerated Autoclaved Concrete Block / Flyash Brick

Sand Lime Brick / AAC Autoclave / Aerated Autoclaved Concrete Block / Flyash Brick

Quick Details:

Heating medium: saturated steam                      Rail distance & height: 800×200(General) (can be design according to buyer)

Light rail: 15kg/m (China-standard)                     Admission direction: both middle-sides inlet

Door opening form: double upside opening      Inlet pipe diameter:DN100

Plate thickness: 20mm                                          Designed temperature: 204 Celsius degree

Designed pressure: 1.6 Mpa                                Working temperature: 201 Celsius degree

Working pressure: 1.5 Mpa                                   Hydraulic test: 2.1 Mpa

Safety valve working pressure: 1.58Mpa            Working medium: saturated steam

Heating method: High temperature steam        Main pressure parts: Q345R(GB713), 16MnⅡ (NB/T47008)

Designed service life: 20 Years                           Weight: 58 Tons

The enclosure dimensions are 33m×3m×2.9m . (nude package)

Raw Material: sand lime brick, cement, flyash brick, slag brick, aerated concrete block, etc.

After-sales service

What is AAC ?

1. Aerated Autoclaved concrete block (light block ) is the light and porous building material. It has light ,keeping temperature , Environmental protection,can\'t burn and other advantages.it has a wide prospect of market.it is the main building material in the future. it can be made into many kinds of bricks(for example:600×200×100,80×80×180,240×115×53,600×200×125),they could be used industry building and common building.they are more and more popular in the world.in the future,they will replace the Clay brick completely.

2. Areated concrete common conception.Common concrete density is usually 1600-2400kg/m3,but areated concrete are 500kg/m3,600kg/m3,700kg/m3.It has not the big grain,main use silicon material (for example:flyash,sand,stone dust and others ),through making the material small for example sand,they can be used directly if has enough degree of small (for example fly ash.Mixing calcium material lime, cement water to a special slop,then add the aluminum dust and the additive.Make the aluminum dust and the special slop have a Chemical reflect.then produce Hydrogen to make the concrete slop to expanding or swell,foam.Next,put them into the curing room to concreting cutting steaming curing,last,there will bacome the light brick,the porous rate is 70-80%.

Feature of AAC:

AAC land and workshop require:
