Help CenterSeries CTS/CTN/CTB Permanent-Magnetic Roller Separators
Related Products
-
CX Series of Dry Powder Vertical SeparatorsNegotiableMOQ: 1 Set -
RCT Permanent Magnetic RollersUS$ 10000 - 10000MOQ: 1 Set
-
Series RCYAI/RCYAII Pipe Permanent Magnetic SeparatorsUS$ 10000 - 10000MOQ: 1 Set
-
RCYB Suspended Permanent Magnetic Iron SeparatorUS$ 10000 - 10000MOQ: 1 Set
-
Series RCYC/RCYD Self-Cleaning Permanent SeparatorsUS$ 10000 - 10000MOQ: 1 Set

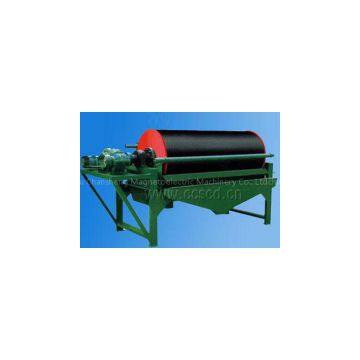

Magnetic Drum Separator for Mineral Ore CTS/CTN/CTB Series:
---Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.
---The downstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: 6-0 mm.
---The half upstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: O~0.5mm, the granularity of granule is 0.15-0.8mm.
Working principle of Iron Ore Equipment:
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
Magnetic Separator CTB Series Feature:
--Optimized design
--Scientific magnetic circuit, made of strong magnetic coercive force
--High-remanence permanent magnet
--Safe and reliable.
--adopt rate earth complex magnetic system,advanced technology,reasonable structure,the special design makes the magnetic intensity more rational in picking and sweeping area,the effect is obvious.
--Special-designed tanks make materials difficult to jam or run.
--Two parts of roller adopt grind-proof AL flange,the roller surface have grind-proof material,long service life and good grind-proof character.
-- Adopt cycloid reducer,small volume,light weight,low power consuming.
--Simple structure and operation,easy maintenance,large disposal capacity.
