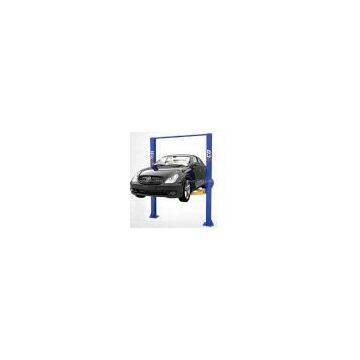

Two Post Car Lift_hydraulic Lift_auto Lift_vehicle Lift

1.Innovative single channel hydraulic synchronization and automatic

Calibration system(HSAC)eliminate cable or chain balancing system from two post lift. by move out cable, pulley , bushing ,and bracket, HSAC created a trouble free simples design

2.dual direct drive hydraulic cylinders eliminate  chain lifting ,lower hydraulic pressure by 50%.expended work life of hydraulic system by an much as 70%

3.Adjustable drive through width, imple and maintains free design cut installation and service  cost by as much as 60%

4.clear floor design for easy access of transmission jack and tool box

5.Dual side muti-level safety locking system with single point lock release protect user from possible danger while still keep convince and efficiency

Specifications: (As per one set)

Lifting capacity

7000LB/3.2T

Overall height

3700mm

Overall width

3307mm

Maximum lifting height

1913mm

Motor capacity

2.2kw/3HP   220V/380V

Drive through

2393mm

Lifting time

60s

Width between post

2393mm

Min. pad height

123mm

N.W.(Kg)

460

G.W.(Kg)

480

L×W×H(mm)

3800*820*550
