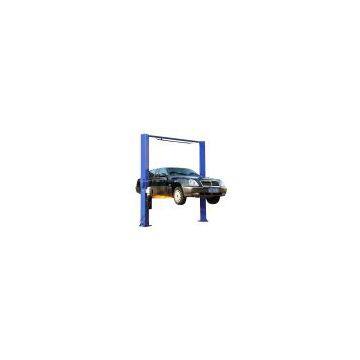

China Auto Lift_hydraulic Lift_car Hosit_2 Post Car Lift

 2 Cylinders - hydraulic direct drive

. 3 Button controls entire operation of hoist with finger touch.

 Cable remote control for convenient operation and safety (Option).

 Can be set up in 3500mm/138" or 3750mm/148" height configurations,

   without changing cables or hoses.

 Dual balancing cable for precise carriage movement.

 Dual cylinder and dual seal packing for reliable and powerful 4 ton lifting.

 Electric control system with electric lock release .

 Engineered self lubricating poly urethane carriage guide.

 Functions as both a symmetric lift & asymmetric lift.

 Gear type auto arm locking mechanism.

 High quality castings in the arm lock restraints.

 Micro switch controlled overhead cut-off bar.

 Rubber door guard protects vehicle doors.

Specifications: (As per one set)

Lifting capacity

9000LB/4.0T

Overall height

3750mm

Overall width

3395mm

Maximum lifting height

1850mm

Motor capacity

2.2kw/3HP

Drive through

2430mm

Lifting time

50s

Width between post

2855mm

Min. pad height

130mm

N.W.(Kg)

720

G.W.(Kg)

750

L×W×H(mm)

2900*1000*440
