Certification:CE,ISO

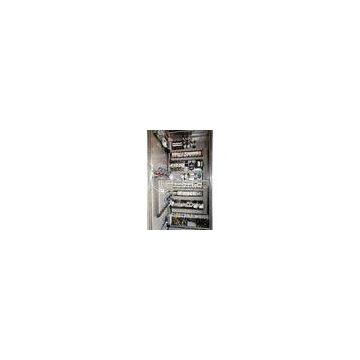

VFC Control systems Construction Hoist Elevator , Single Cage 2700kg Capacity with one Rack
Quick Detail:
|
Name |
Other Name |
Brand Name |
Control |
|
Construction lifting hoist |
Construction lifting hoist SC 270 |
BORUIDA |
DOL and FC |
|
Loading Capacity |
2700kg |
Certificate |
CE |
Description:
1. Construction lifting hoist SC 270 is installed and dismounted conveniently and can grow as high as the building grows height.
2. The Construction lifting hoist has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
3. It is efficient and safety vertical transporting equipment
Applications:
SC serialization of products Construction lifting hoist is a Rack and Pinion EL. Construction lifting hoist widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.
Specifications
Standard technical datas of single cage :
|
Parameter |
SC100 |
SC160 |
SC200 |
SC270 |
SC320 |
|
Rated |
1000 |
1600 |
2000 |
2700 |
3200 |
|
Rated lifting speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated passenger number |
12 |
18 |
24 |
30 |
38 |
|
Max. lifting height(m) |
150 |
250 |
450 |
450 |
450 |
|
Engine power(kW) |
2*9.5 |
2*11 |
2*13 |
3*18.5 |
3*22 |
|
Cage inner dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Cage weight (kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast section weight |
145 |
145 |
163 |
163 |
163 |
|
Mast section dimension (mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety device type |
SAJ30-1.2 |
SAJ40-1.2 |
SAJ40-1.4 |
SAJ40-1.4 |
SAJ50-2.0 |
|
Hanger rated lifting capacity |
250 |
250 |
250 |
250 |
250 |
|
Rack module |
8 |
8 |
8 |
8 |
8 |
SC series construction lifting hoists:
1). Cage load capacity: 1000kg~3200kg;
2). Lifting speed:33m/min, 0~40m/min;0~60m/min;
3). Increased lifting height on request;
4). Mast section: Painted or hot dipped zinc
5). Cage:doub
