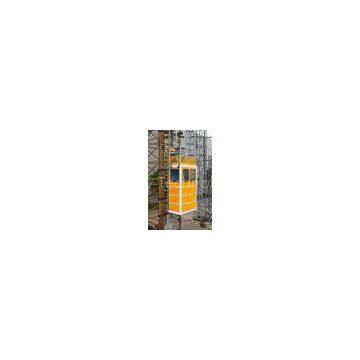

Portable Construction Material Hoists / Passenger Hoist Green Yellow Or Customized

Single Car Passenger hoists CH300  300kg Capacity with Mast Hot-dip Galvanized

Quick Detail:

Description:

Personnel and material hoists are designed from the drawing board not only to excel as people carriers in multiple applications, but also to be able to handle materials of loads up to 3,200 kilograms. All personnel and material hoists are built to last in the harshest environments.

Applications:

Personnel and material hoists are built to withstand harsh environments and installations with or without an existing hoist shaft.

Specifications

Standard technical datas of single car :

CH series personnel and material hoists:

1). Car load capacity: 300kg~750kg;

2). Lifting speed:30m/min, 0~40m/min;

3). Increased lifting height on request;

4). Mast section: Painted or hot dipped zinc

5). Car:double car

6). Recommended car inner dimensions (L*W*H): 1*0.8*2.2 m,1.2*0.8*2.2 m,1.5*1*2.2 m, according to requirements of customers;

7). Motor and reducing device: Made in China, or uses SEW according to requirements

8). Color of car: Yellow, red, blue or your request

9). Car load capacity: 300kg, 500kg, 750kg

10). including VFD or without VFD.

Competitive Advantage:

1). Ideal for tough environments

2). No enclosed hoistway or shaft needed

3). Suitable for both indoor and outdoor installation

4). Small footprint

5). No machine room required

6).Few changes required to buildings and structures

7). Easy to retrofit on existing buildings or structures

8). No lifting height limit

9). High capacity and speed

10). Accurate levelling at landings

11). Safe descent during a power outage

12). Durable and easy to maintain

           13). Wide range of optional equipment and functions
