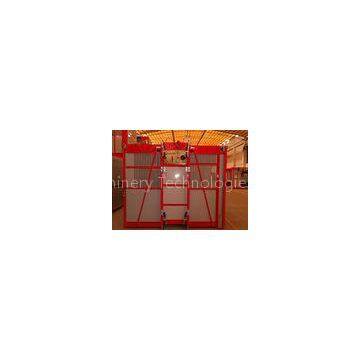

CH1000 Red 1000kg Material / Passenger Hoist With Load Capacity Single Cage
Quick Detail:
|
Name |
Other Name |
Brand Name |
Control |
|
Personnel and material hoists |
Personnel and material hoists CH 1000 |
BORUIDA |
DOL and FC |
|
Loading Capacity |
1000kg |
Certificate |
CE |
DeCription:
Personnel and material hoists CH 1000 is installed and dismounted conveniently and can grow as high as the building grows height.The Personnel and material hoists has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.It is efficient and safety vertical transporting equipment
Applications:
CH serialization of products Personnel and material hoists is a Rack and Pinion EL. Personnel and material hoists widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.
Specifications
Standard technical datas of single car :
|
Parameter |
CH1000 |
CH1600 |
CH2000 |
CH2700 |
CH3200 |
|
Rated |
1000 |
1600 |
2000 |
2700 |
3200 |
|
Rated lifting speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated passenger number |
12 |
18 |
24 |
30 |
38 |
|
Max. lifting height(m) |
150 |
250 |
450 |
450 |
450 |
|
Engine power(kW) |
2*9.5 |
2*11 |
2*13 |
3*18.5 |
3*22 |
|
Car inner dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Car weight (kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast section weight |
145 |
145 |
163 |
163 |
163 |
|
Mast section dimension (mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety device type |
SAJ30-1.2 |
SAJ40-1.2 |
SAJ40-1.4 |
SAJ40-1.4 |
SAJ50-2.0 |
|
Hanger rated lifting capacity |
250 |
250 |
250 |
250 |
250 |
|
Rack module |
8 |
8 |
8 |
8 |
8 |
