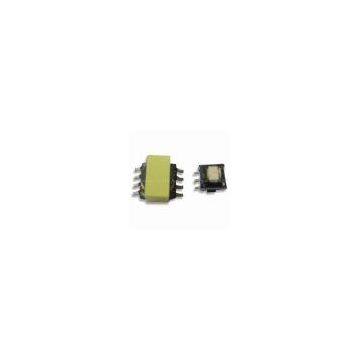

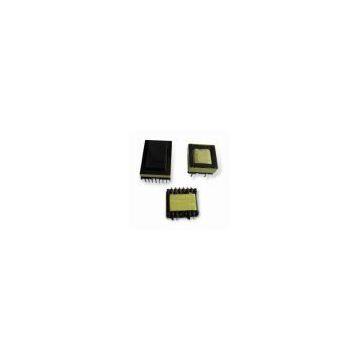

SMD Transformers, Available in Various Types, Customized Designs are Accepted

SMD Transformers, Available in Various Types, Customized Designs are Accepted

Model Number:    FAT003-50-2

Key Specifications/Special Features:

• Features:
  • Switching power
  • Pulse, telecom, audio frequency, Isolated, line matching and ignition
  • EC, EE.EI and PQ type high-frequency switch transformer
  • EP type magnet shielding switch transformer
  • RM type communication filter and Aux power transformer
  • ET, FT type linearity filter
  • T (ring) type filter and switch transformer
  • G (jar shape) switch transformer
  • DR (I) type transformer
  • T (ring) iron power core and DC filter inductor
  • Various types of transformers: Pot PQ, CI, UI, EFD, EP, ER, EPC, RM and EE
  • High-frequency transformer suitable for EL/CCFL inverter or DC/DC converter
  • Customized designs are accepted
  • Used in high-density installation with good shielding quality
  • Applications: switching power supplies, chargers, alarm system, TV and CRT monitor displays, UPS, VCD/DVD players, audio and visual equipment, OA machines and inverter
• Typical products:
  • PQ 2020 2016 2625 3220 3225 3230 3235 3535 4040 and 5050
  • EI, EE series:
    • EI, EE-5.0, 8.3, 10, 13, 16, 19, 20, 22, 25, 28, 30, 33, 35, 40, 42, 50, 55, 60, 65, 70, 80 and 100
    • EF series: EF-4539, 16, 20, 25, 30 and 32
    • ERL series: ERL-28, 35, 39, 42 and 49
    • ETD series: ETD-29, 34, 39, 44, 49, 54 and 59
  • EFD-15, 20, 25, 30 introduction of transformers of our main product:
    • EC, EE.EI and PQ type high-frequency switch transformer
    • EP type magnet shielding switch transformer
    • RM type communication filter and aux power transformer
    • ET, FT type linearity T (ring) type filter and switch transformer
    • G (Jar shape) switch transformer
    • DR (I) type transformer
    • T (ring) iron power core and DC filter inductor
    • RM series: RM-4, 5, 6, 8, 10, 12 and 14
