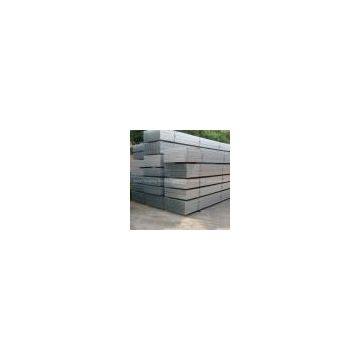

Steel grating

Material: Carbon steel or Stainless steel

Characteristics: High strength and light structure-film mush welding structure endows it with the characteristics of high load bearing, light structure and convenience for lifting; Handsome appearance and durable-hot galvanizing surface treatment makes it possess good antiseptic power and glossy and handsome surface. Beside, it have good properties of vantilation, light, heat elimination, explosion proof and anti skid.

Assortment: Galvanized steel grating, hot galvanized grating, electric galvanized steel grating

Usage: Widely used in oil refinery, iron and steel work, chemical plants, power plants, medicine plants, machneries mills, paper mills, cement mills, for uses of gangway and platform for pump rooms or engine rooms in various ships, flooring in various bridges such as railway bridge sidewalks, platform for oil extraction sites, car washing sites and air towers. We are able to supply all standard sizes and also can design and produce according to your drawing and requirements.

GALVANISED TRANSVERSE TRENCH GRATING

	A	B
Product	Grate	Grate	Load Bars	Edge Bar	Cross Bar
Code	Width mm	Depth mm	Size	Size	Size
GG150	150	20	20 x 5 @ 40mm c/c	20 x 5	6mm @ 100 c/c
GG230	230	25	25 x 5 @ 40mm c/c	25 x 5	6mm @ 100 c/c
GG300	300	25	25 x 5 @ 40mm c/c	25 x 5	6mm @ 100 c/c
GG210HD	210	32	32 x 5 @ 30mm c/c	32 x 5	6mm @ 100 c/c
GG310HD	310	40	40 x 5 @ 30mm c/c	40 x 5	6mm @ 100 c/c
GG380HD	380	40	40 x 5 @ 30mm c/c	40 x 5	6mm @ 100 c/c

GALVANISED STORMWATER PIT GRATING

Product	Grate	Grate	Load Bars	Edge Bar	Cross Bar
Code	Width mm	Length mm	Size	Size	Size
SPG4L	540	540	25 x 5 @ 40mm c/c	50 x 5	6mm @ 100 c/c
SPG4H	540	540	50 x 5 @ 40mm c/c	50 x 5	6mm @ 100 c/c
SPG6L	690	690	25 x 5 @ 40mm c/c	50 x 5	6mm @ 100 c/c
SPG6H	690	690	50 x 5 @ 40mm c/c	50 x 5	6mm @ 100 c/c
SPG96L	690	990	25 x 5 @ 40mm c/c	50 x 5	6mm @ 100 c/c
SPG96H	690	990	50 x 5 @ 40mm c/c	50 x 5	6mm @ 100 c/c
SPG9L	690	990	25 x 5 @ 40mm c/c	50 x 5	6mm @ 100 c/c
SPG9H	990	990	50 x 5 @ 40mm c/c	50 x 5	6mm @ 100 c/c
SPG12L	1290	645	25 x 5 @ 30mm c/c	50 x 5	6mm @ 100 c/c
SPG12H	1290	645	50 x 5 @ 30mm c/c	50 x 5	6mm @ 100 c/c

Our steel grating products are produced to meet the listed standards:

Steel Grating Standard	Steel Material Standard	Hot Dip Zinc Coating Standard
China Standard: YB/T4001—1998	China Standard: GB700—88	China Standard: GB/T13912-92
USA Standard: ANSI/NAAMM(MBG531—88)	USA Standard: ASTM(A36)	USA Standard: ASTM(A1 23)
UK Standard: BS4592—1987	UK Standard: BS4360(43A)	UK Standard: BS729
Australia Standard: ASl 657—1 992	Australia Standard: AS3679	Australia Standard: ASl650
