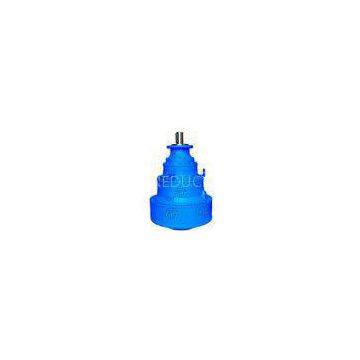

Help CenterHN Series Planetary Gear Reducer Units HN9 - 20 Roller Press Drives
Related Products
-
Flange Mounted Planetary Gear Reducer , Low Backlash Planetary Motor GearboxNegotiableMOQ: 1 Set -
Planetary Shaft Mounted Speed Reducer for Wind Power EquipmentNegotiableMOQ: 1 Set
-
Structure Compact Planetary Reduction Gearbox 300 Series With High Torque DensityNegotiableMOQ: 1 Piece
-
Speed Reduction Planetary AC Gear Motor / Mechanical Power TransmissionNegotiableMOQ: 1 Square Meter
-
High Torque Planetary Gear Transmission , Crusher / Compressor GearboxNegotiableMOQ: 1 Set
Certification:CE,ISO9001:2008,ISO14001,GB28001
Quick Details:
Power range:0.4∼ 9551 KW
Ratio rang: I = 3.5∼15000
Torque rang: 450∼11205000 N.m
Input Speed: 750rpm – 1800 rpm
Output Speed: 0.1 rpm- 350 rpm
Mounting position: foot mounted, hollow shaft mounted, solid shaft mounted
Output shaft: hollow shaft , solid shaft
Gearcase housing: HT cast Iron Housing suitable for outdoor installation
Backstop: Available on all frame sizes With/without anti-back Backstop
Descriptions:
With the HN Series Planetary Gear Reducer unit series, HENGTAI provides also standardized gear unit solutions for higher
power rating ranges in the proven HENGTAI quality. With 27 sizes and seven basic types the PLANUREX
series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1.
The specific requirements to be taken into account for bucket wheel, slewing gear and travelling gear drives
in the field of materials handling have already been realized in standardized products. Get your benefit from
the advantages of a standard product available for your industry.
Products benefits:
Low weight and compact, place-saving design owing to a load sharing system
Saving operating expenses owing to high efficiencies and optimized maintenance intervals
Easy to combine with other gear units, e.g. primary helical, worm, bevel, or bevel-helical gear units
Low-noise running owing to low rolling and sliding speeds at the tooth flan
Storage:
1: Pls do not store in outdoor.
2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly
touch the floor.
WARRANTY:
HFT guarantees the products sold for one year from the date of delivery.
Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained
defect of material or manufacture. The parts replaced remain our property. All other compensation is
excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack
of use of the goods purchased.
Applications:
Roller presses Slewing gear drives Bucket wheel drives Apron conveyor drives Agitator drives Travelling gear drives Rotary kiln drives Central drives for tube millsSpecifications:
Model: HN2B, HN2Y, HN2W, HN3B, HN3Y, HN3W
Sizes:9,10,11,12,13,14,16,17,18,19,20
|
Model |
HN2B |
||||||||||
|
9 |
10 |
11 |
12 |
13 |
14 |
16 |
17 |
18 |
19 |
20 |
|
|
Output Torque(Nm) |
22000 |
31000 |
42000 |
60000 |
83000 |
117000 |
160000 |
202000 |
244000 |
295000 |
354000 |
THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
