Certification:RoHS Compliant, SGS Certificate, ISO Certificate

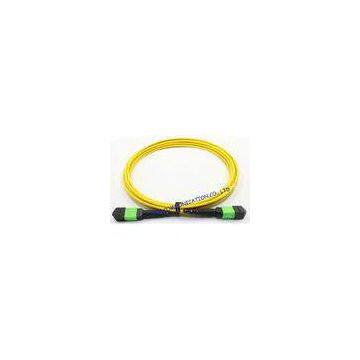

LSZH Jacket FTTX 12 Core Fiber Optic Patch Cord , Fiber Optic Jumper
We supply fiber optic patch cord, fiber optic patch cable, LC,SC/APC,ST, E2000/APC, MU, VF45, FC, MT-RJ, SC, MPO, Volition, MTP, FC/APC, ST/APC, LC/APC, E2000, DIN, D4, SMA, Escon, FDDI, RoHS compliant, LSZH, Riser, Plenum, OFNR, OFNP, simplex, duplex, single mode, 9/125, SM, multimode, MM, 50/125, 62.5/125.
Fiber Optic Patch Cable Geometric Specification
Types: PC, UPC, APC,
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm, +50 nm
Angular Offset: 8°± 0.5°C (APC)
Ordering Information
Connector 1: LC, FC, SC, ST, MTRJ, DIN, D4, E2000, MPO
Connector 2: LC, FC, SC, ST, MTRJ, DIN, D4, E2000, MPO
Ferrule Interface type: UPC, APC
Fiber cores: Simplex, duplex
Fiber type; Singlemode(G. 652, G655), multimode(50/125)/(62.5/125),OM3
Fiber diameter(mm): Φ 0.9, Φ 2.0, Φ 3.0
Fiber length:Customize length
Features of fiber optic patch cord
1. Low insertion loss and High Return Loss
2. Fully compliant with standards of IEC and YD-T826/1996
3. Temperature stability: Operating temperature: -20 to +75°C
4. High durability, more than 500 times mating.
5. Individual package with detail information label.
6. All patch cords are 100% tested
SPECIFICATIONS
|
Connector |
FC, SC, ST, LC |
|
|
UPC |
APC |
|
|
Insertion Loss |
≤0.3dB |
|
|
Return Loss |
≥50dB |
≥60dB |
|
Cable Outer Diameter(mm) |
￠0.9, ￠2.0, ￠3.0 |
|
|
Durability |
≤0.3dB(1000 matings) |
|
|
Interchangeability |
≤0.2dB |
|
|
Operating Temperature |
-40℃～+80℃ |
Technical Test Data
|
Test item |
Test condition |
|
Wet-resistance |
Temperature:85ºC/relative humidity 85％/14days/insertion loss≤0.1dB |
|
Temperature change |
Temperature: -40ºC~+75ºC/relative humidity 10％-80％ /42 repetitions/14days/ insertion loss≤0.1dB |
|
Water resistance |
Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB |
|
Vibrancy |
Swing 1.52mm/frequency 10Hz～55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB |
|
Load bend |
0.454kg load/100circles insertion loss≤0.1dB |
|
Load torsion |
0.454kg load/10 circles insertion loss ≤0.1dB |
|
Tensility resistance |
0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB |
|
Strike |
High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB |
|
Reference standard |
Bellcore TA-NWT-001209 insertion loss≤0.1dB |
Re Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.
Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
