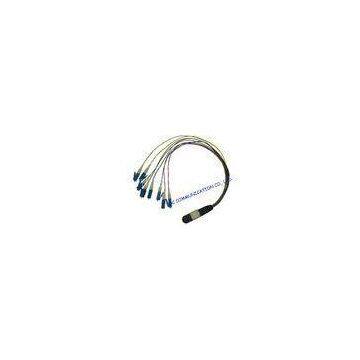

MPO Multi Core Fiber Duplex Patch Cord For Passive and Active Fiber Optic Devices
We supply fiber optic patch cord, fiber optic patch cable, LC,SC/APC,ST, E2000/APC, MU, VF45, FC, MT-RJ, SC, MPO, Volition, MTP, FC/APC, ST/APC, LC/APC, E2000, DIN, D4, SMA, Escon, FDDI, RoHS compliant, LSZH, Riser, Plenum, OFNR, OFNP, simplex, duplex, single mode, 9/125, SM, multimode, MM, 50/125, 62.5/125.
Features
Low insertion Loss and low return loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-1435-CORE compliant
Applications
CATV, Multimedia
Telecommunication Networks
Data processing networks
Premise installations
Optical switch interframe connection
Specifications
|
Single Mode |
Multimode |
|
|
Insertion Loss |
Typical≤0.5dB,Maximum≤0.75dB |
Typical≤0.5dB,Maximum≤0.75dB |
|
Return Loss |
≥50dB |
≥30dB |
|
Operating Temperature |
-20℃～70℃ |
|
|
Durability |
≤0.2dB typical changes, 1000matings |
|
|
Interchangeability |
≤0.2dB |
|
|
Tensile strength |
>70N |
|
|
Repeatability |
≤0.1dB |
Ordering Information
|
Connector Type |
Housing Color |
Boot Type |
Cores |
Fiber Type |
Length |
|
Male |
Beige |
Bare fiber short boot |
4cores |
9/125um(SM) |
Customized |
|
Female |
Black |
Ribbon Cable |
8cores |
50/125um(MM) |
|
|
Green |
Bare fiber long boot |
12cores |
62.5/125um(MM) |
||
|
Yellow |
90 degree boot |
16cores |
OM3 |
||
|
24cores |
Advantages
1. Guaranteed high quality products
2. Fast delivery speed
3. Safety Shipping
4. Quick Response within 24hours
Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
