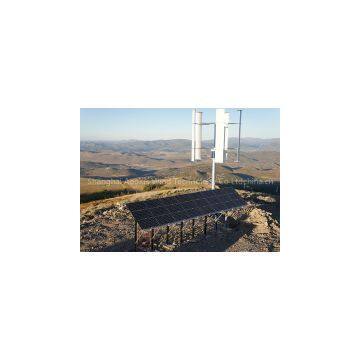

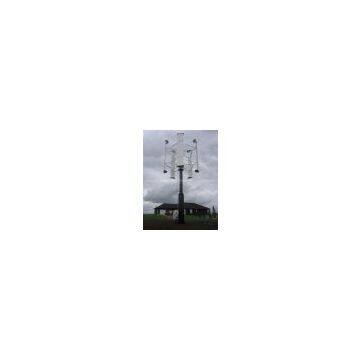

Help Center10kw Vertical Axis Wind Turbine
Related Products
Performance:
Rated Power: 10kW
Max Power: 12kW
Rated Wind Speed: 2m/s
Cut-In Speed: 2m/s
Cut-out Speed: 25m/s
Survival Wind Speed: 55m/s
Physical Parameters:
Mill Diameter: 6m
Mill Height: 6.2m
Mill Weight: 2375kg
Tower Height & Weight: 5.5m(1000kg)
Generator Parameters:
Type: PMG 3 Phase
Rated Voltage: AC 250V
Rated Current: 23A
Protection Level: IP54
Controller Output:
Output Voltage(On-grid): DC 50-375V
Output Voltage(Off-grid): DC 110V
Over Speed Protection & Braking System:
Speed Control Style: Pitch Control System
Brake Style: Automatic Hydraulic Brake
Advantages of VAWT:
Nearly Quiet
Birds Friendly
More Safety Features
Wonderful Performance at Low Wind Speed
Captures Wind from All Directions
Longer Working Life
Less Maintenance
Less Requirements on Foundation
Advantages over Other VAWT:
High Efficiency
Pitch Control to Govern Speed
Automatic Hydraulic Brake
