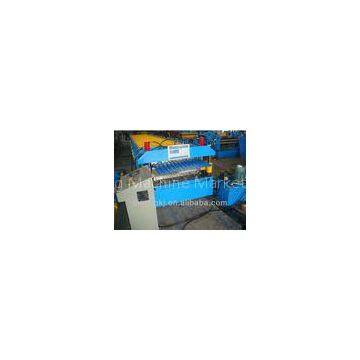

Double Layer Roll Forming Machine with Speed 15-18m / min for Corrugated Roof

Double Layer Roll Forming Machine with Speed 15-18m / min for Corrugated Roof

Application:

Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.

The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.

Technical Parameters:

1)     Main motor power: 5.5kw

2)     Drive: Chain

3)     Main shaft dia: ￠76mm   material: 45# forge steel and quenched

4)     Roller material: 45# forge steel and quench treatment hardness 58-62, chrome coated 0.05mm

5)     Roll station: 16 groups for upper layer and 20 groups for lower layer

6)     Raw material: 0.3-0.8mm

7)     Width of raw material: 1250mm

8)     Valid width after fromed: 1150mm&1000mm9)     Working speed: 10m--15m/min(Exclude cutting time)

10)  Length Tolerance: ±2mm

11)  Weight of machine: about 8ton

12)  Size of machine: About  10500×1800×1900mm L x W x H

13)  Color of machine: depend on customer14)  Coder: Omron

15)  Control: PLC Panasonic, made in Japan. 380V 50HZ

16)  Computer operating panel: touching screen

17)  Cutting: Hydraulic cutting18)  Auto cutting when reach the set length.

19)  Hydraulic power: 3KW

20)  Blade material: Cr12,quenched 58°-62°

21)  Working pressure:16mpa

22)  Cutting tolerance: 1.5mm

Working flow:

Uncoiler—Feeding—roll forming--- hydraulic cut to length—output table

 Character of main structure

a)      The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.

b)     All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c)      We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d)     It is very easy to install the equipment and suitable for producing in the factory.

       e)     Low noise with high efficiency

Advantage:

available for two profiles roof panel shared one frame, save the cost.

1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color
c) Agile connecting
d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles
