Bi - Directional Wireless Long Range TDMA Full Duplex Transmitter System

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LinkAV		Place of Origin	China
Model Number	T321S

Product Description

Delivery Time:20 Days
Certification:CE Applicable

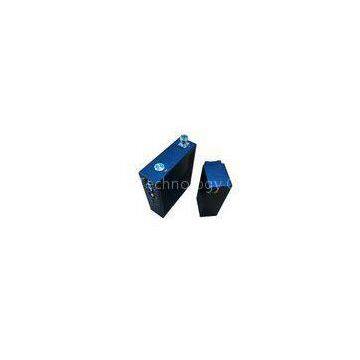

1W Bi - directional Wireless Long Range Transmitter System

Product Features:

Modularized, three proof, low-power consumption design; Support system with frequency or inter frequency networking; automatic roaming Stable power, adjustable dynamic power rate; Encryption: AES 128 bit, can set user’s password; IP NLOS transparent data transmission;

Technical Parameters:

Item	Description
Working Frequency	300~800MHz(Customized)
RF Bandwidth	2 / 4 / 8MHz
Modulation Type	TDD-OFDM
Communication Method	TDMA Full Duplex
Power Output	≤30dBm
Band Flatness	≤ ±0.5dB
Spurious Spectrum	≤ -36dBm
Third-order IMD	≤ -36dBC
Receiving Sensitivity	≤ -100dBm
Anti-adjacent Frequency Interfere	≥ 40dB
Synchronization Control	GPS
Network Protocol	IP/TCP,UDP,HTTP,SMTP etc
Video Compression	H.264
Video Format	CIF/D1/720P
Video Encoding	64Kbps G.711
Audio Input	Two-channel 12dBm
Work Temperature	-30 ~ +70°C
Battery(12V/7800mA)	Over 5 Hours
Power Input	DC:10V ~ 16V
Power Consumption	15 ~ 30W
Size	54128220(mm)
Net Weight	1.7Kg
Audio Interface	BNC video Input ,3.5mm Standard headset, 2.5mm output audio
Control system data connection	RS232
RF Antenna Terminal	RF Head
Network Interface	RJ45

Background:

Zhongchuang Tech is specialized in COFDM, TDD and 3G/4G wireless video transmission products for over 9 years, including video wireless transmitter, video wireless transmitter and receiver, quality video wireless transmitter, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels,UAV, Automobiles and so on.
